Lincoln P502 Grease pump 1 Liter 12V with Timer

  • Suitable for grease to NLGI 2
  • Includes Pump element K6 with an output of 2.8cc/min. Can be extended to a maximum of 3 pump elements, see related products.
  • Connection pump element 1/4"G
  • Supply voltage 12VDC
  • Maximum pressure 270 bar
  • Protection class IP65
  • Temperature -25 to 70°C

The advise is to use a pressure relief valve with a maximum pressure of 270 bar for every pump element. Click here for an overview.

Stock quantity: 43
Verzending door DHL

Orders placed on workdays before 15:30 will be shipped the same day.

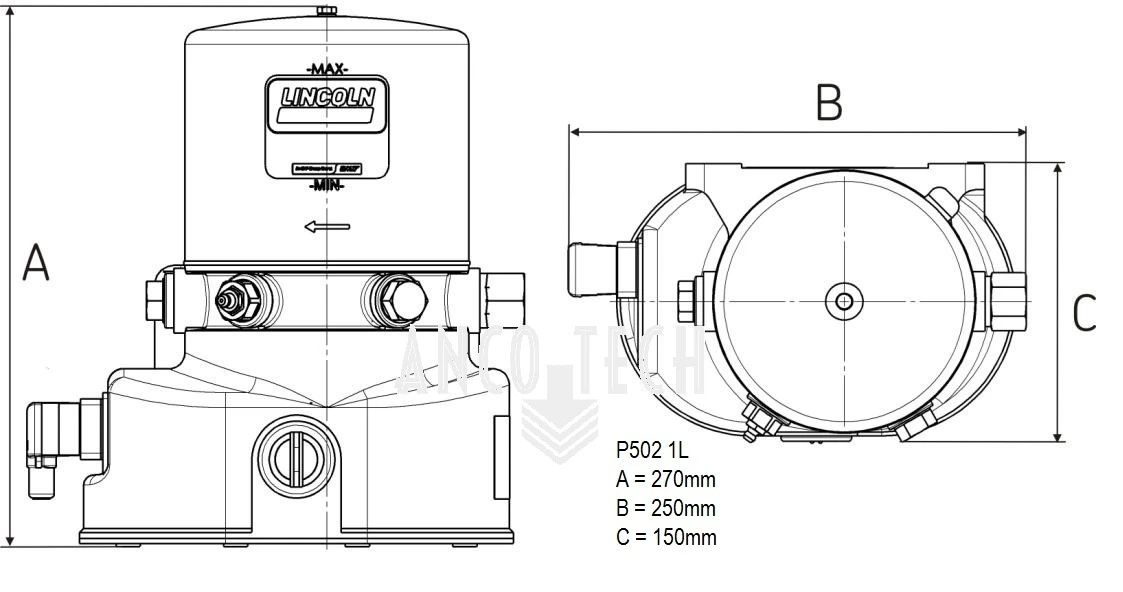

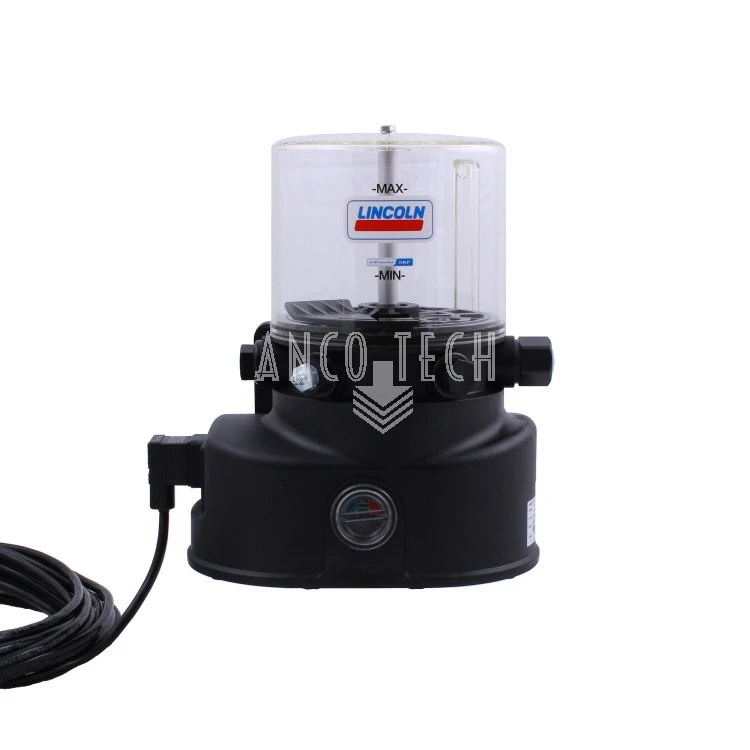

Lincoln P502 Grease pump

Lincoln P502 Grease pump 1 Liter 12V with Timer

Lincoln Quicklub pump P502
Model  P502- 1XN-1K6-12-1A1.10-V20
Reservoir capacity 1 Liter
For lubricant Grease to class NLGI-2
Low level signal No
Pump elements 1 x K6
Supply voltage 24V DC

Electrical connection

Left side, power supply

Right side, none

Connector Square Form A DIN 175301-803 with 10 meter cable
Timer  Yes
Lincoln Reference 658-41219-4
