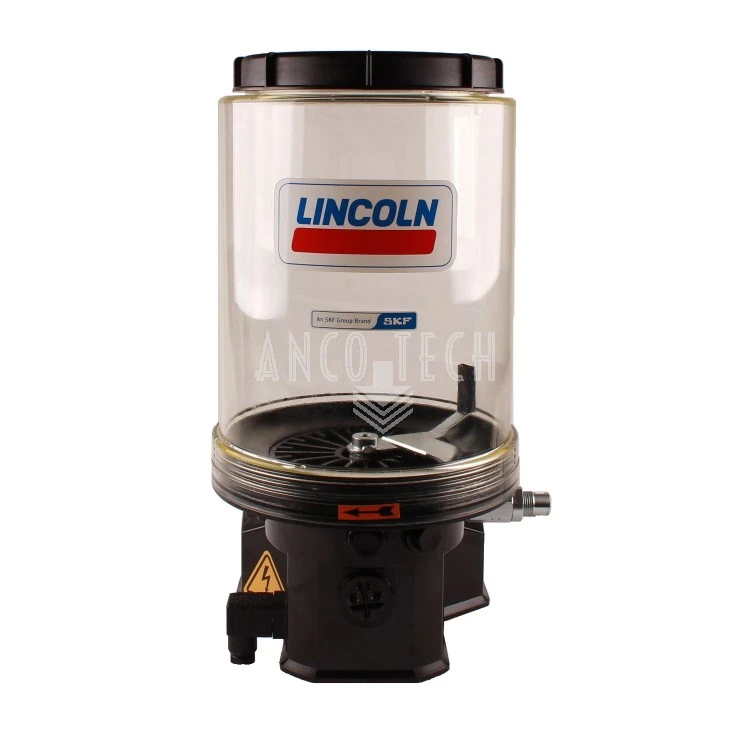

- P203 OILPUMP 8L 230V + TIMER
We recommend using a pressure relief valve for each outlet. Click here for an overview of pressure relief valves.
Specifications
- SKU 1041580
- Brand Lincoln
- Pump type P203
- Model P203__-_8YNBO-R00-AC-D1000000-V10Z
- Model (old) P203- 8YNBO-1KR-AC-1A1.01-V10
- Lincoln Reference 644-40792-4
- Pump Electric
- Pump element(s)
- Power supply 230V
- Reservoir type Plastic with screw cap
- Maximum pressure (bar) 350
- Material to be pumped Oil
- Suitable for grease up to class NLGI-2
- Connector Vierkant Form A DIN 175301-803
- Electric connections aansluiting(en) Linkerzijde, Voeding Rechterzijde, Geen
- Country of origin CZ
- HS Code 84135069
Below you will find the downloads and documents. These are manuals or pictures that explain the product.
Manuals
