- P203 OIL PUMP 2L 24V + LOW LEVEL SIGNAL

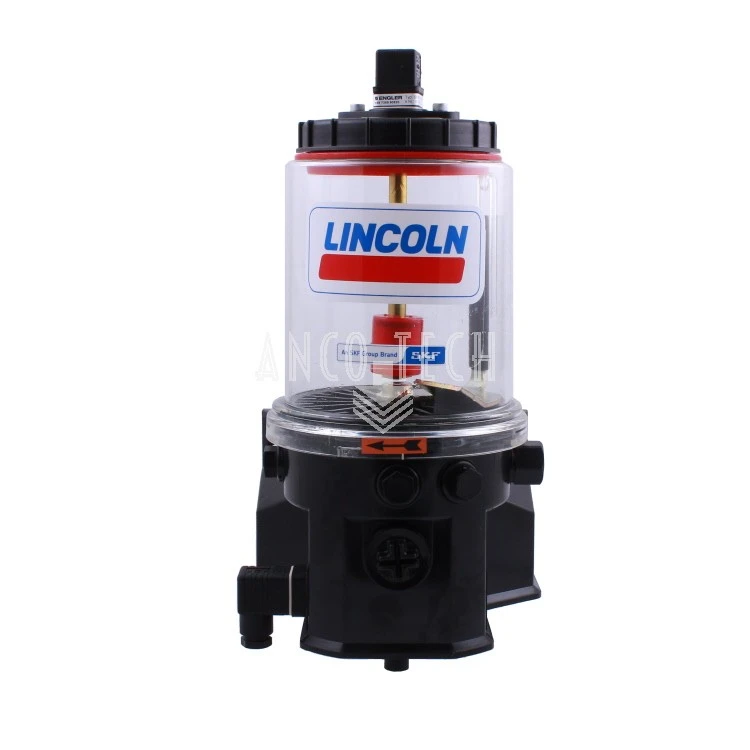

| Lincoln Quicklub pump P203 | |
| Model | P203- 2YLBO-1K7-24-1A1.01 |
| Reservoir size | 2 Liters |
| For lubricant | Oil with minimal viscosity of 40mm²/s |
| Low level signal | Yes |
| Reservoir type | With screw cover |
| Pump elements | 1 x K7 |
| Supply voltage | 24V DC |
| Electrical connection | Left side, power supply Screw cap, low level signal |
| Connector | Square Form A DIN 175301-803 |
| Timer | No |
| Lincoln Reference | 544-40743-2 |
Specifications
- ID 610
- SKU 1041071
- Manufacturer Lincoln
- Reservoir 2 L
- Power supply 24V
- Timer No
- Low level signal Yes
- Lincoln Reference 644-40743-2
- Maximum pressure (bar) 350
- Material to be pumped Oil
- Model P203- 2YLBO-1K7-24-1A1.01
- Pump element(s) 1 x K7
- Suitable for grease up to class NLGI-2
- Stock status Out of stock
- Connector Vierkant Form A DIN 175301-803
- Electric connections Linkerzijde, Voeding | Schroefdeksel, Laag niveau controle
Below you will find the downloads and documents. These are manuals or pictures that explain the product.
Manuals
Data Sheet
