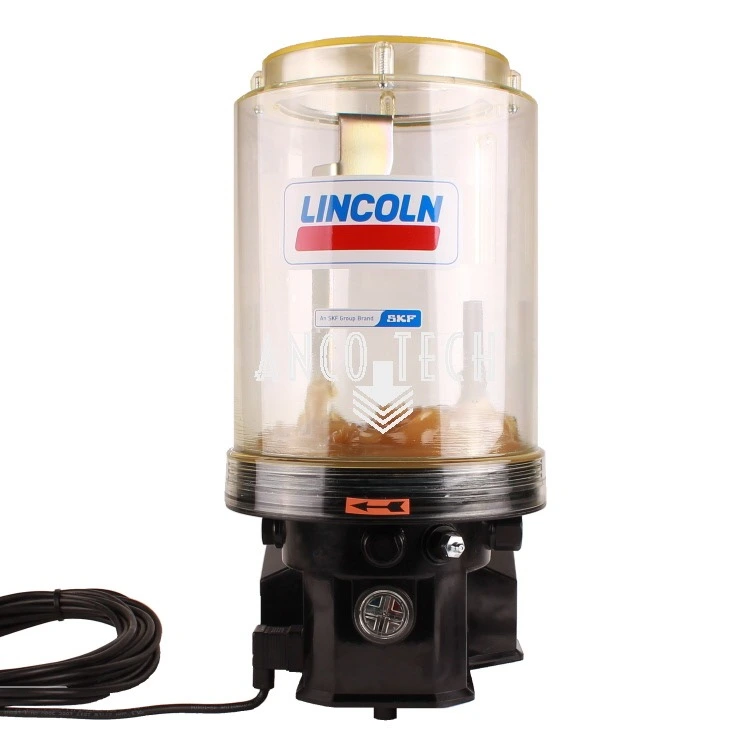

- P203 GREASE PUMP 8L 24V + TIMER
| Lincoln Quicklub pump P203 | |
| Model | P203_E-_8XN__-600-24-AA000000-V10A |
| Model (old) | 203- 8XN -1K6-24-1A1.10-V10 |
| Reservoir capacity | 8 Liter |
| For lubricant | Grease to class NLGI-2 |
| Low level signal | No |
| Reservoir type | Standard / closed |
| Pumpelements | 1 x K6 |
| Supply voltage | 24V DC |
| Electrical connection | Left side, power supply Right side, none |
| Connector | Square Form A DIN 175301-803 with 10 meter cable |
| Timer | Yes |
| Lincoln Reference | 644-40969-1 |
Specifications
- ID 2332
- SKU 1042704
- Manufacturer Lincoln
- Reservoir 8 L
- Power supply 24V
- Timer Yes
- Low level signal No
- Maximum pressure (bar) 350
- Material to be pumped Grease
- Model P203_E-_8XN__-600-24-AA000000-V10A
- Pump element(s) 1 x K6
- Suitable for grease up to class NLGI-2
- Stock status In stock
- Connector Vierkant Form A DIN 175301-803 met 10 meter kabel
- Electric connections Linkerzijde, Voeding Rechterzijde, Geen
- Model (old) 203- 8XN -1K6-24-1A1.10-V10
Below you will find the downloads and documents. These are manuals or pictures that explain the product.
Manuals
