- P203 GREASE PUMP 8L 24V + LOW LEVEL SIGNAL

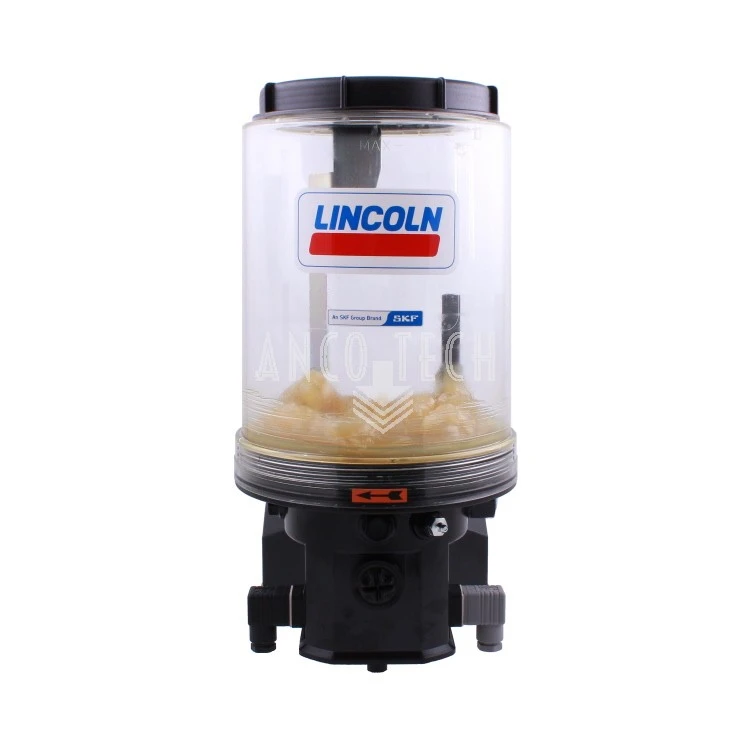

| Lincoln Quicklub pump P203 | |
| Model | P203_E-_8XLBO-600-24-1100G200-___A |
| Model (old) | P203- 8XLBO-1K6-24-2A1.01 |
| Reservoir capacity | 8 Liter |
| For lubricant | Grease to class NLGI-2 |
| Low level signal | Yes |
| Reservoir type | With screw cap |
| Pump elements | 1 x K6 |
| Supply voltage | 24V DC |
| Electrical connection | Left side, power supply Right side, low level signal & manual operation with illuminated push button |
| Connector | Square Form A DIN 175301-803 |
| Timer | No |
| Lincoln Reference | 644-40550-7 |
Specifications
- ID 1058
- SKU 1041051
- Manufacturer Lincoln
- Reservoir 8 L
- Power supply 24V
- Timer No
- Low level signal Yes
- Lincoln Reference 644-40550-7
- Maximum pressure (bar) 350
- Model P203_E-_8XLBO-600-24-1100G200-___A
- Pump element(s) 1 x K6
- Suitable for grease up to class NLGI-2
- Stock status In stock
- Connector Vierkant Form A DIN 175301-803
- Electric connections Linkerzijde, Voeding | Rechterzijde, Laag niveau controle & handbediening met verlichte drukknop
- Model (old) P203- 8XLBO-1K6-24-2A1.01
Below you will find the downloads and documents. These are manuals or pictures that explain the product.
Manuals
