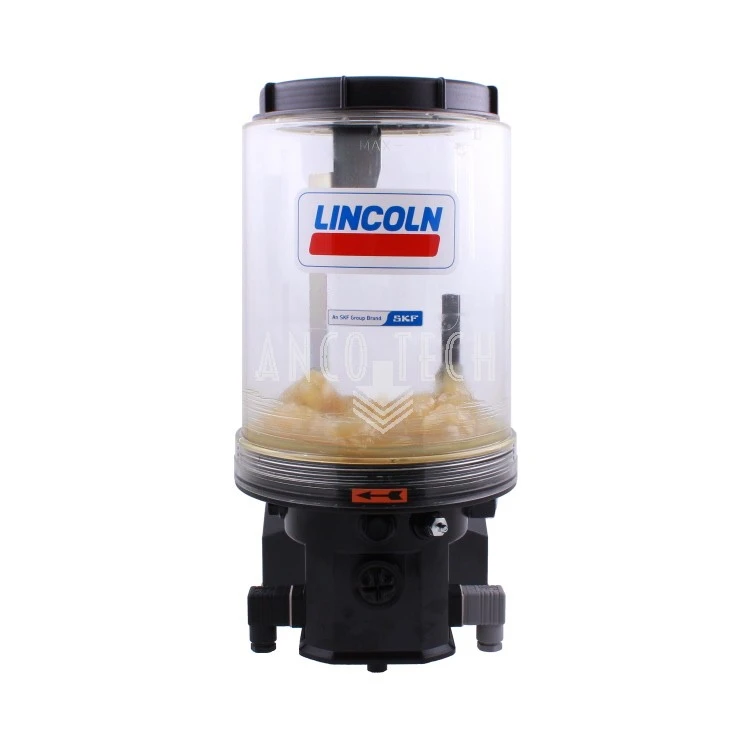

- P203 GREASE PUMP 8L 230V + TIMER + LOW LEVEL SIGNAL
| Lincoln Quicklub pump P203 | |
| Model | P203__-_8XLBO-600-AC-D100G200-V10A |
| Model (old) | P203- 8XLBO-1K6-AC-2A1.01-V10 |
| Reservoir capacity | 8 Liter |
| For lubricant | Grease to class NLGI-2 |
| Low level signal | Yes |
| Reservoir type | With screw cap |
| Pump elements | 1 x K6 |
| Supply voltage | 230V AC |
| Electrical connection | Left side, power supply Right side, low level signal and manual operation with illuminated push button |
| Connector | Square Form A DIN 175301-803 |
| Timer | Yes |
| Lincoln Reference | 644-40762-2 |
Specifications
- SKU 1041055
- Reservoir 8 L
- Timer Yes
- Low level signal Yes
- Country of origin CZ
- Maximum pressure (bar) 350
- Brand Lincoln
- Model P203__-_8XLBO-600-AC-D100G200-V10A
- Pump type P203
- Pump element(s) 1 x K6
- SKF Reference 644-40762-2
- Suitable for grease up to class NLGI-2
- Material to be pumped Grease
- Power supply 230V
- Connector Vierkant Form A DIN 175301-803
- Electric connections Linkerzijde, Voeding | Rechterzijde, Laag niveau controle & handbediening met verlichte drukknop
- Model (old) P203- 8XLBO-1K6-AC-2A1.01-V10
- Stock status In stock
- HS Code 84135069
Below you will find the downloads and documents. These are manuals or pictures that explain the product.
Data Sheet
Manuals
