- P203 GREASE PUMP 4L 24V + TIMER + LOW LEVEL SIGNAL

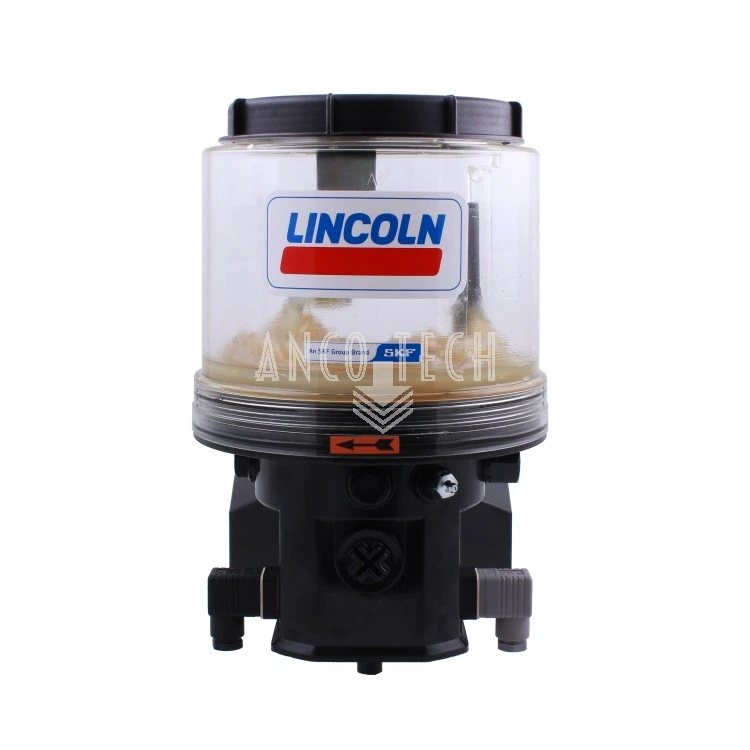

Lincoln P203 Grease pump 4 Liters 24V with Timer and Low Level signal
| Lincoln Quicklub pump P203 | |
| Model | P203_E-_4XLBO-700-24-A100F200-V10A |
| Model (old) | P203- 4XLBO-1K7-24-2A1.01-V10 |
| Reservoir size | 4 Liters |
| For lubricant | Grease to class NLGI-2 |
| Low level signal | Yes |
| Reservoir type | With screw lid |
| Pump elements | 1 x K7 |
| Supply voltage | 24V DC |
Electrical connection | Left side, power supply Right side, low level signal & manual control with illuminated button |
| Connector | Square Form A DIN 175301-803 |
| Timer | Yes |
| Lincoln Reference | 644-40586-3 |
Specifications
- ID 399
- SKU 1041043
- Manufacturer Lincoln
- Reservoir 4 L
- Power supply 24V
- Timer Yes
- Low level signal Yes
- Lincoln Reference 644-40586-3
- Maximum pressure (bar) 350
- Material to be pumped Grease
- Model P203_E-_4XLBO-700-24-A100F200-V10A
- Pump element(s) 1 x K7
- Suitable for grease up to class NLGI-2
- Stock status In stock
- Connector Vierkant Form A DIN 175301-803
- Electric connections Linkerzijde, Voeding | Rechterzijde, Laag niveau controle & handbediening met verlichte drukknop
- Model (old) P203- 4XLBO-1K7-24-2A1.01-V10
Below you will find the downloads and documents. These are manuals or pictures that explain the product.
Manuals
