- P203 GREASE PUMP 4L 24V + TIMER 2A1

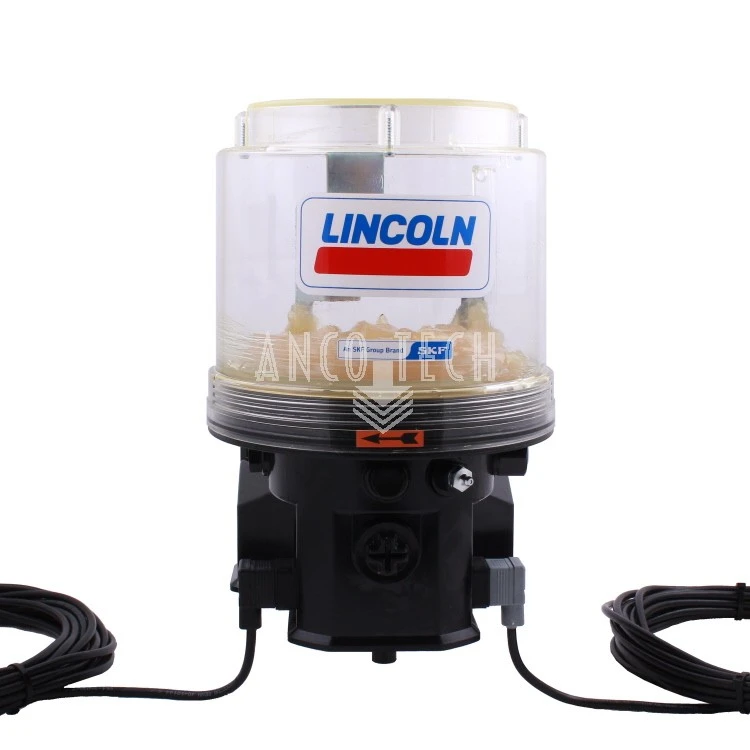

| Lincoln Quicklub pump P203 | |
| Model | P203_E-_4XN__-600-24-AA00FB00-V10A |
| Model (old) | P203- 4XN -1K6-24-2A1.10-V10 |
| Reservoir capacity | 4 Liter |
| For lubricant | Grease to class NLGI-2 |
| Low level signal | No |
| Reservoir type | Standard / Closed |
| Pump elements | 1 x K6 |
| Supply voltage | 24V DC |
| Electrical connection | Left side, power supply Right side, manual operation with illuminated push button |
| Connector | Square Form A DIN 175301-803 with 10 meter cable |
| Timer | Yes |
| Lincoln Reference | 644-40860-4 |
Specifications
- ID 1063
- SKU 1042699
- Manufacturer Lincoln
- Reservoir 4 L
- Power supply 24V
- Timer Yes
- Low level signal No
- Maximum pressure (bar) 350
- Material to be pumped Grease
- Model P203_E-_4XN__-600-24-AA00FB00-V10A
- Pump element(s) 1 x K6
- Suitable for grease up to class NLGI-2
- Stock status In stock
- Connector Vierkant Form A DIN 175301-803 met 10 meter kabel
- Electric connections Linkerzijde, Voeding
- Model (old) P203- 4XN -1K6-24-2A1.10-V10
Below you will find the downloads and documents. These are manuals or pictures that explain the product.
Manuals
