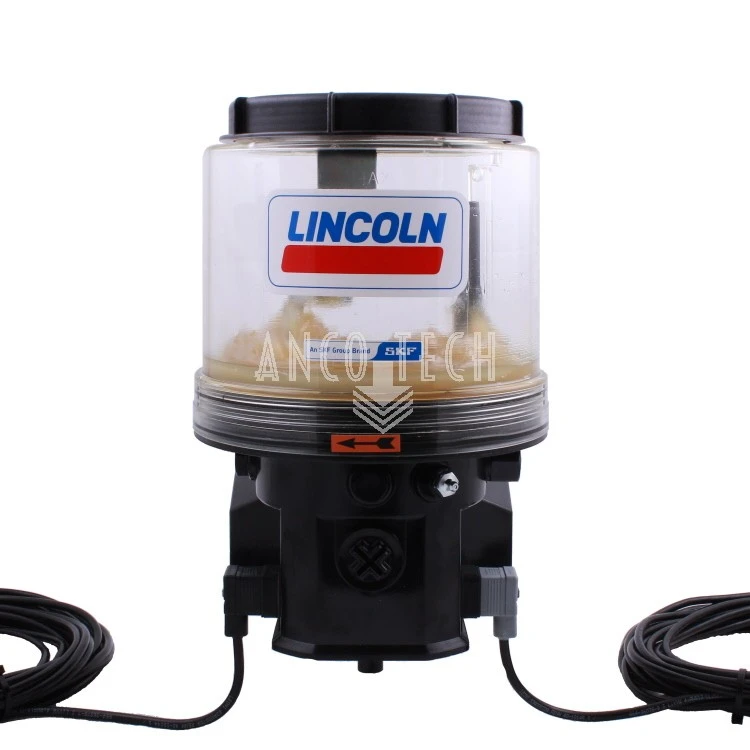

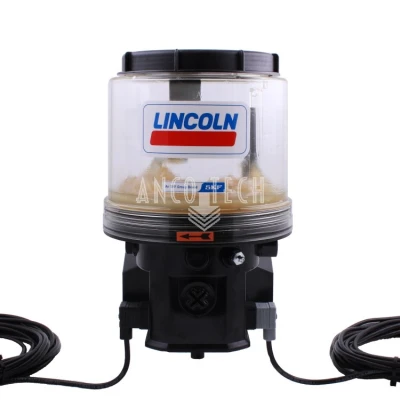

- P203 GREASE PUMP 4L 24V + LOW LEVEL SIGNAL
| Lincoln Quicklub pump P203 | |
| Model | P203_E-_4XLBO-600-24-1A00GB00-___A |
| Model (old) | P203- 4XLBO-1K6-24-2A1.10 |
| Reservoir capacity | 4 Liter |
| For lubricant | Grease to class NLGI-2 |
| Low level signal | Yes |
| Reservoir type | With screw cap |
| Pump elements | 1 x K6 |
| Supply voltage | 24V DC |
| Electrical connection
| Left side, power supply Right side, Low leve signal and manual operation with illuminated push button |
| Connector | Square Form A DIN 175301-803 with 10 meter cable |
| Timer | No |
| Lincoln Reference | 644-37515-1 |
Specifications
- ID 1057
- SKU 1040994
- Reservoir 4 L
- Power supply 24V
- Timer No
- Low level signal Yes
- HS Code 84135069
- Country of origin CZ
- Lincoln Reference 644-37515-1
- Maximum pressure (bar) 350
- Brand Lincoln
- Pump type P203
- Material to be pumped Grease
- Model P203- 4XLBO-1K6-24-2A1.10
- Pump element(s) 1 x K6
- Suitable for grease up to class NLGI-2
- Stock status In stock
- Connector Vierkant Form A DIN 175301-803 met 10 meter kabel
- Electric connections Linkerzijde, Voeding | Rechterzijde, Laag niveau controle & handbediening met verlichte drukknop
Below you will find the downloads and documents. These are manuals or pictures that explain the product.
Manuals
