- P203 GREASE PUMP 4L 12V + TIMER

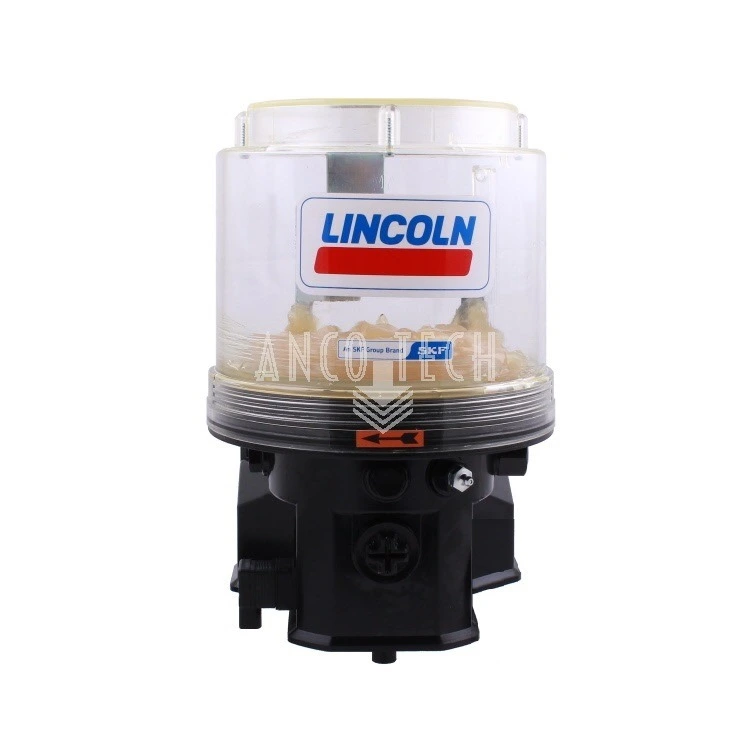

| Lincoln Quicklub pump P203 | |
| Model | P203_E-_4XN__-600-12-A1000000-V10A |
| Model (old) | P203- 4XN -1K6-12-1A1.01-V10 |
| Reservoir capacity | 4 Liter |
| For lubricant | Grease to class NLGI-2 |
| Low level signal | No |
| Reservoir type | Standard / closed |
| Pumpelements | 1 x K6 |
| Supply voltage | 12V DC |
| Electrical connections | Left side, power supply Right side, none |
| Connector | Square Form A DIN 175301-803 |
| Timer | Yes |
| Lincoln Reference | 644-41072-6 |
Specifications
- ID 2381
- SKU 1041475
- Manufacturer Lincoln
- Reservoir 4 L
- Power supply 12V
- Timer Yes
- Low level signal No
- Lincoln Reference 644-41072-6
- Maximum pressure (bar) 350
- Material to be pumped Grease
- Model P203_E-_4XN__-600-12-A1000000-V10A
- Pump element(s) 1 x K6
- Suitable for grease up to class NLGI-2
- Stock status In stock
- Connector Vierkant Form A DIN 175301-803
- Electric connections Linkerzijde, Voeding | Rechterzijde, Geen
- Model (old) P203- 4XN -1K6-12-1A1.01-V10
Below you will find the downloads and documents. These are manuals or pictures that explain the product.
Manuals
