- P203 GREASE PUMP 2L FLAT 24V + TIMER

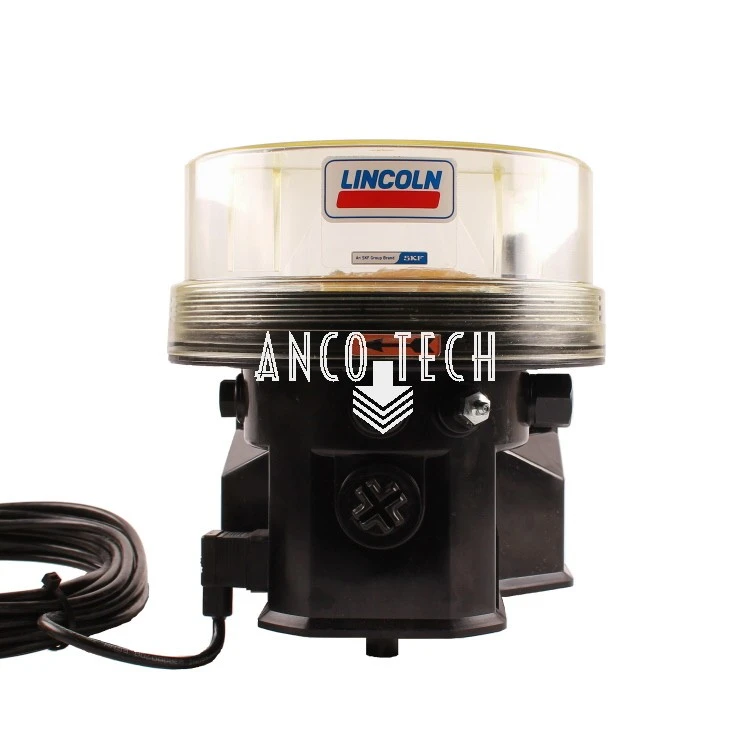

| Lincoln Quicklub pump P203 | |
| Model | P203_E-_2XNFL-600-24-AA000000-V10A |
| Model (old) | P203- 2XNFL-1K6-24-1A1.10-V10 |
| Reservoir capacity | 2 Liters |
| For lubricant | Grease to class NLGI-2 |
| Low level signal | No |
| Reservoir type | Standard / Closed / Flat |
| Pump Elements | 1 x K6 |
| Power Supply | 24Vdc |
| Electric connection(s) | Left Side, Power Supply Right Side, None |
| Connector | Square Form A DIN 175301-803 with 10 meter cable |
| Timer | Yes |
| Lincoln Reference | 644-37470-1 |
Specifications
- ID 1258
- SKU 1041550
- Manufacturer Lincoln
- Reservoir 2 L
- Power supply 24V
- Timer Yes
- Low level signal No
- Maximum pressure (bar) 350
- Material to be pumped Grease
- Model P203_E-_2XNFL-600-24-AA000000-V10A
- Pump element(s) 1 x K6
- Suitable for grease up to class NLGI-2
- Stock status In stock
- Connector Vierkant Form A DIN 175301-803 met 10 meter kabel
- Electric connections Linkerzijde, Voeding Rechterzijde, Geen
- Model (old) P203- 2XNFL-1K6-24-1A1.10-V10
Below you will find the downloads and documents. These are manuals or pictures that explain the product.
Manuals
Data Sheet
