- P203 GREASE PUMP 2L FLAT 24V

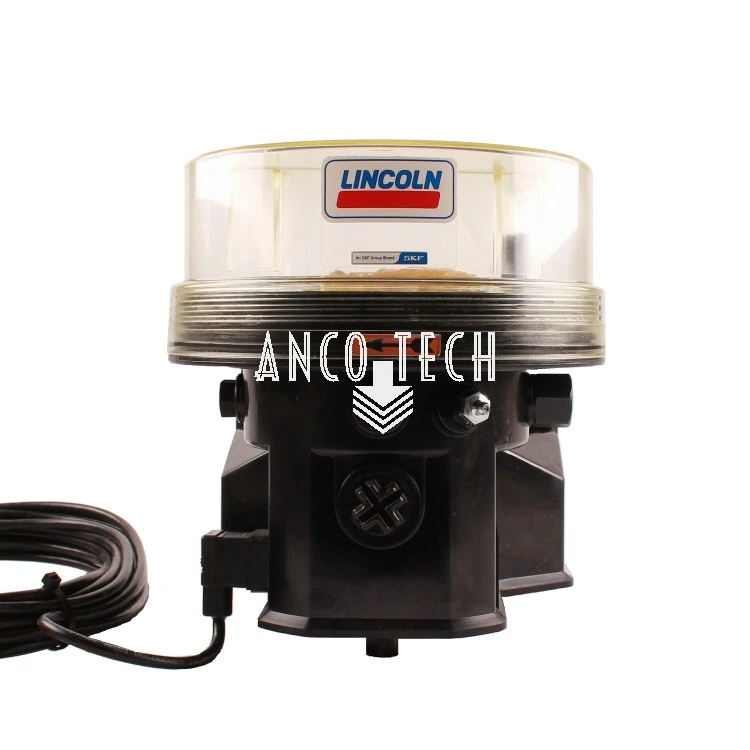

| Lincoln Quicklub pump P203 | |
| Model | P203_E-_2XNFL-600-24-1A000000-___A |
| Model (old) | P203- 2XNFL-1K6-24-1A1.10 |
| Reservoir capacity | 2 Liter |
| For lubricant | Grease to class NLGI-2 |
| Low level signal | No |
| Reservoir type | Standard / Closed / Flat |
| Pumpelements | 1 x K6 |
| Supply voltage | 24V DC |
| Power supply | Left side, power supply Right side, none |
| Connector | Square Form A DIN 175301-803 with 10 meter cable |
| Timer | No |
| Lincoln Reference | 644-41186-8 |
Specifications
- ID 2600
- SKU 1042455
- Manufacturer Lincoln
- Reservoir 2 L
- Power supply 24V
- Timer No
- Low level signal No
- Maximum pressure (bar) 350
- Material to be pumped Grease
- Model P203_E-_2XNFL-600-24-1A000000-___A
- Pump element(s) 1 x K6
- Suitable for grease up to class NLGI-2
- Stock status In stock
- Connector Vierkant Form A DIN 175301-803 met 10 meter kabel
- Electric connections Linkerzijde, Voeding
- Model (old) P203- 2XNFL-1K6-24-1A1.10
Below you will find the downloads and documents. These are manuals or pictures that explain the product.
Manuals
Data Sheet
