P203 GREASE PUMP 2L 24V + TIMER

SKU
1040987

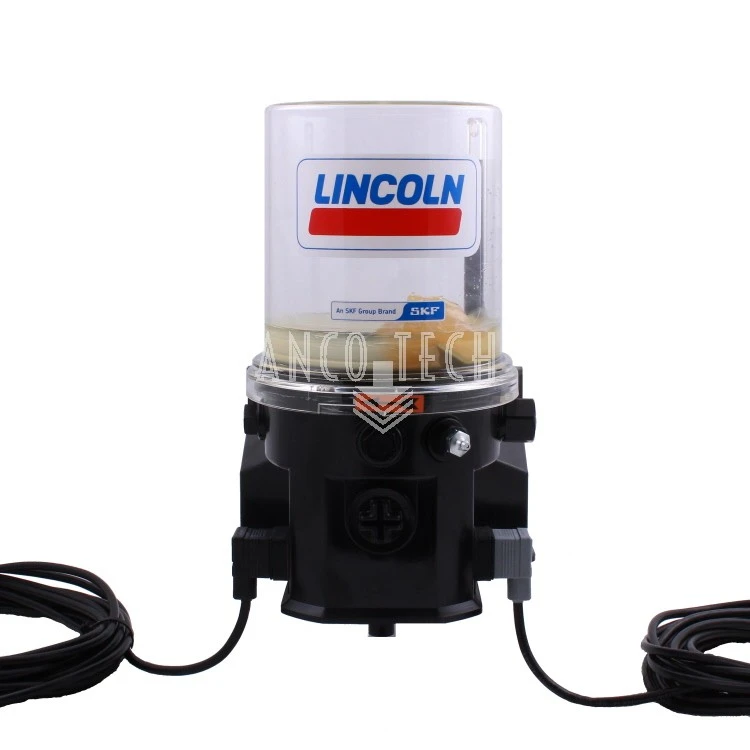

Lincoln P203 grease pump 2 Liter 24V with timer

  • Suitable for grease to NLGI 2
  • Includes Pump element K6 with an output of 2.8cc/min. Can be extended to a maximum of 3 pump elements, see related products.
  • Connection pump element 1/4"G
  • Supply voltage 24VDC
  • Connector includes 10 meter cable
  • Maximum pressure 350 bar
  • Protection class IP65
  • Temperature -25 to 75°C

We recommend using a pressure relief valve for each pump element. Click here for an overview of pressure relief valves.

Stock quantity: 5
€1,226.93
Verzending door DHL

Orders placed on workdays before 15:30 will be shipped the same day.


Lincoln Quicklub pump P203
Model P203_E-_2XN__-600-24-AA00FB00-V10A
Model (old) P203- 2XN  -1K6-24-2A1.10-V10
Reservoir capacity 2 Liter
For lubricant Grease to class NLGI-2
Low level signal No
Reservoir type Standard / closed
Pump elements 1 x K6
Supply voltage 24V DC

Electrical connection

Left side, power supply

Right side, manual operation with illuminated push button

Connector Square Form A DIN 175301-803 with 10 meter cable
Timer  Yes
Lincoln Reference 644-37426-1



More Information
Power supply24V
