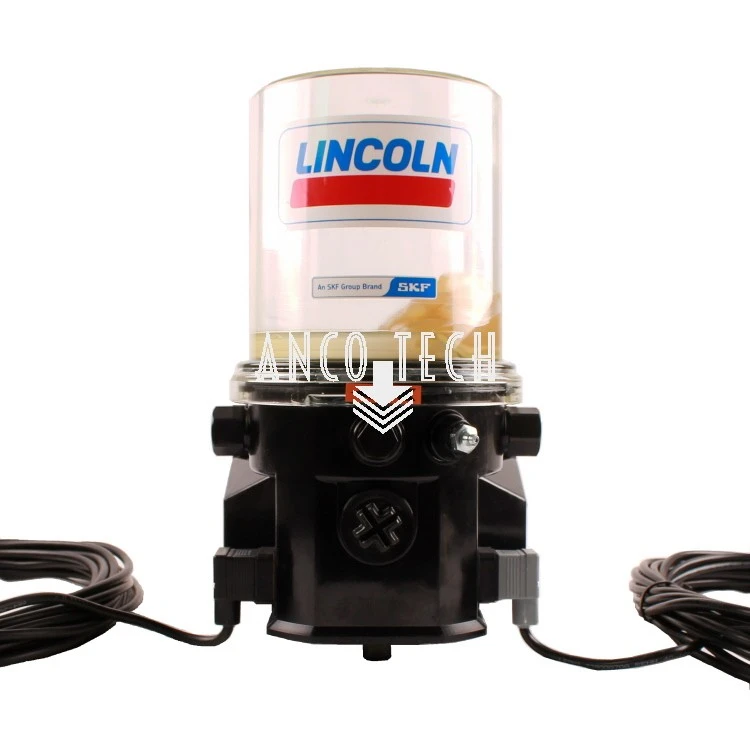

- P203 GREASE PUMP 2L 24V 2 OUTLET + TIMER
| Lincoln Quicklub pump P203 | |
| Model | P203_E-_2XN__-705-24-AA00FB00-V10A |
| Model (old) | P203- 2XN -1K7/1K5-24-2A1.10-V10 |
| Reservoir capacity | 2 Liter |
| For lubricant | Grease to class NLGI-2 |
| Low level signal | No |
| Reservoir type | Standard / closed |
| Pumpelement(s) | 1 x K5 (left) 1 x K7 (right) |
| Supply voltage | 24V DC |
| Electrical connections | Left side, power supply Right side, manual operation with illuminated button |
| Connector | Square Form A DIN 175301-803 with 10 meter cable |
| Timer | Yes |
| Lincoln Reference | 644-47068-8 |
Specifications
- ID 1309
- SKU 1041935
- Manufacturer Lincoln
- Reservoir 2 L
- Power supply 24V
- Timer Yes
- Low level signal No
- Maximum pressure (bar) 350
- Material to be pumped Grease
- Model P203_E-_2XN__-705-24-AA00FB00-V10A
- Pump element(s) 1 x K7
- Suitable for grease up to class NLGI-2
- Stock status In stock
- Connector Vierkant Form A DIN 175301-803 met 10 meter kabel
- Electric connections Linkerzijde, Voeding
- Model (old) P203- 2XN -1K7/1K5-24-2A1.10-V10
Below you will find the downloads and documents. These are manuals or pictures that explain the product.
Manuals
Data Sheet
