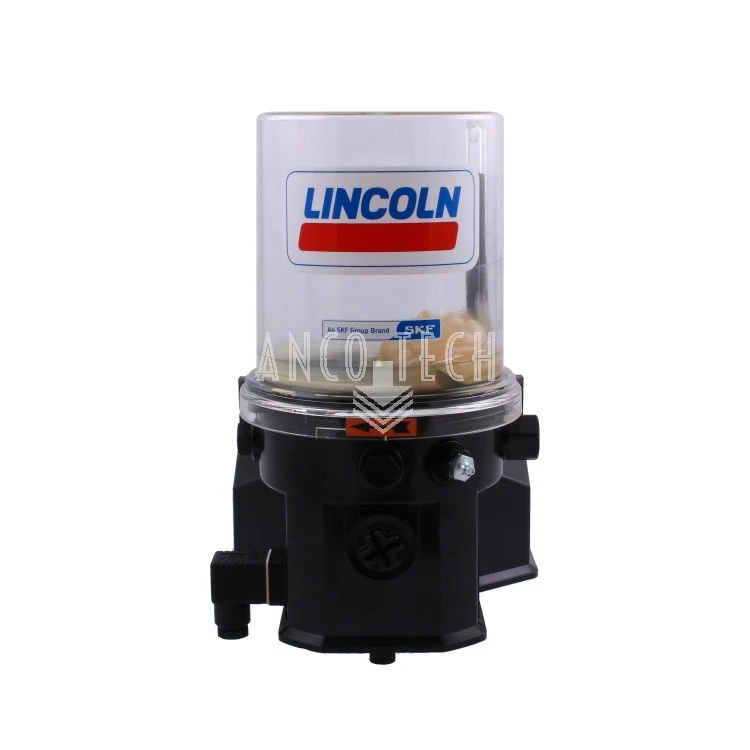

Lincoln P203 Grease pump 2 Liter 12V with Timer
| Lincoln Quicklub pump P203 | |
| Model | P203_E-_2XN__-700-12-A1000000-V10A |
| Model (old) | P203- 2XN -1K7-12-1A1.01-V10 |
| Reservoir size | 2 Liters |
| For lubricant | Grease to class NLGI-2 |
| Low level signal | No |
| Reservoir type | Standard / Closed |
| Pump elements | 1 x K7 |
| Supply voltage | 12V DC |
| Electrical connection | Left side, power supply Right side, none |
| Connector | Square Form A DIN 175301-803 |
| Timer | Yes |
| Lincoln Reference | 644-40835-3 |
Specifications
- ID 401
- SKU 1042500
- Manufacturer Lincoln
- Reservoir 2 L
- Power supply 12V
- Timer Yes
- Low level signal No
- Material to be pumped Grease
- Model P203_E-_2XN__-700-12-A1000000-V10A
- Pump element(s) 1 x K7
- Suitable for grease up to class NLGI-2
- Stock status In stock
- Connector Vierkant Form A DIN 175301-803
- Electric connections Linkerzijde, Voeding
- Model (old) P203- 2XN -1K7-12-1A1.01-V10
Below you will find the downloads and documents. These are manuals or pictures that explain the product.
Manuals
Data Sheet
