P203 GREASE PUMP 2L 12V + TIMER
SKU
1040986

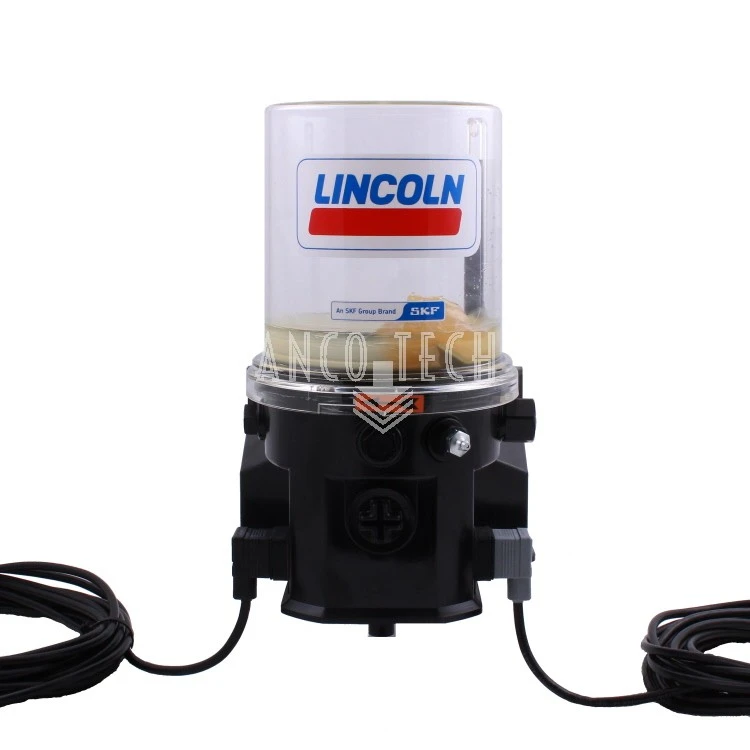

Lincoln P203 Grease pump 2 Liter 12V with timer
- Suitable for greae to NLGI 2
- Includes Pump element K6 with an output of 2.8cc/min. Can be extended to a maximum of 3 pump elements, see related products.
- Connection pump element 1/4"G
- Supply voltage 12VDC
- Connector includes 10 meter cable
- Maximum pressure 350 bar
- Protection class IP65
- Temperature -25 to 75°C
We recommend using a pressure relief valve for each pump element. Click here for an overview of pressure relief valves.
Stock quantity: 4
€1,226.93
Related Products
| Lincoln Quicklub pump P203 | |
| Model | P203_E-_2XN__-600-12-AA00FB00-V10A |
| Model (old) | P203- 2XN -1K6-12-2A1.10-V10 |
| Reservoir capacity | 2 Liter |
| For lubricant | Grease to class NLGI-2 |
| Low level signal | No |
| Reservoir type | Standard / closed |
| Pump elements | 1 x K6 |
| Supply voltage | 12V DC |
|
Electrical connection |
Left side, power supply Right side, manual operation with illuminated push button |
| Connector | Square Form A DIN 175301-803 with 10 meter cable |
| Timer | Yes |
| Lincoln Reference | 644-37425-1 |
