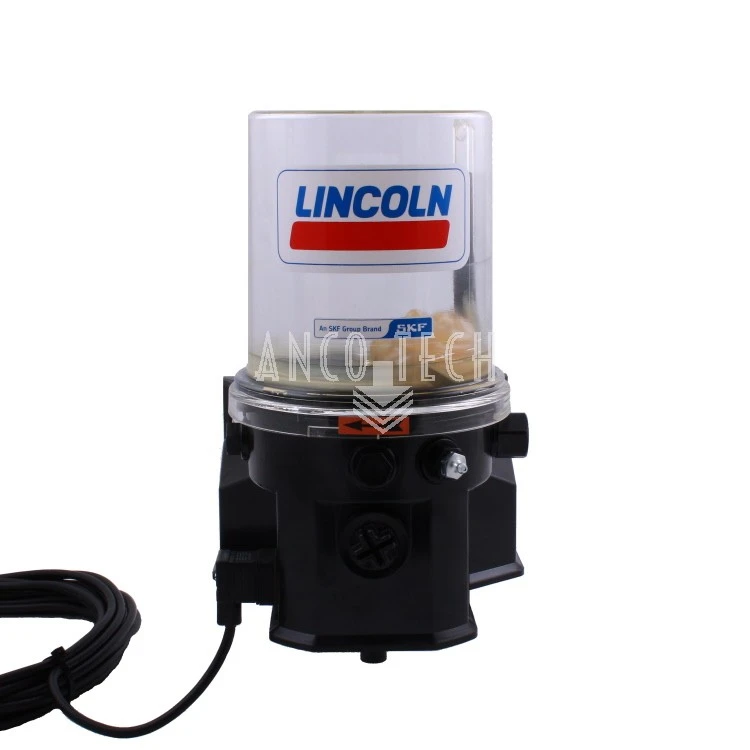

- P203 GREASE PUMP 2L 12V + TIMER
| Lincoln Quicklub pump P203 | |
| Model | P203_E-_2XN__-600-12-AA000000-V10A |
| Model (old) | P203- 2XN -1K6-12-1A1.10-V10 |
| Reservoir size | 2 Liter |
| For lubricant | Grease to class NLGI-2 |
| Low level signal | No |
| Reservoir type | Standard / Closed |
| Pump elements | 1 x K6 |
| Supply voltage | 12V DC |
| Electrical connection | Left side, power supply Right side, none |
| Connector | Square Form A DIN 175301-803 with 10 meter cable |
| Timer | Yes |
| Lincoln Reference | 644-37423-1 |
Specifications
- ID 1054
- SKU 1040984
- Reservoir 2 L
- Power supply 12V
- Timer Yes
- Low level signal No
- HS Code 84135069
- Country of origin CZ
- Lincoln Reference 644-37423-1
- Maximum pressure (bar) 350
- Brand Lincoln
- Pump type P203
- Material to be pumped Grease
- Model P203_E-_2XN__-600-12-AA000000-V10A
- Pump element(s) 1 x K6
- Suitable for grease up to class NLGI-2
- Stock status Out of stock
- Connector Vierkant Form A DIN 175301-803 met 10 meter kabel
- Electric connections Linkerzijde, Voeding | Rechterzijde, Geen
- Model (old) P203- 2XN -1K6-12-1A1.10-V10
Below you will find the downloads and documents. These are manuals or pictures that explain the product.
Manuals
Data Sheet
