METERING DEVICE SSV 8 K
SKU
1040265

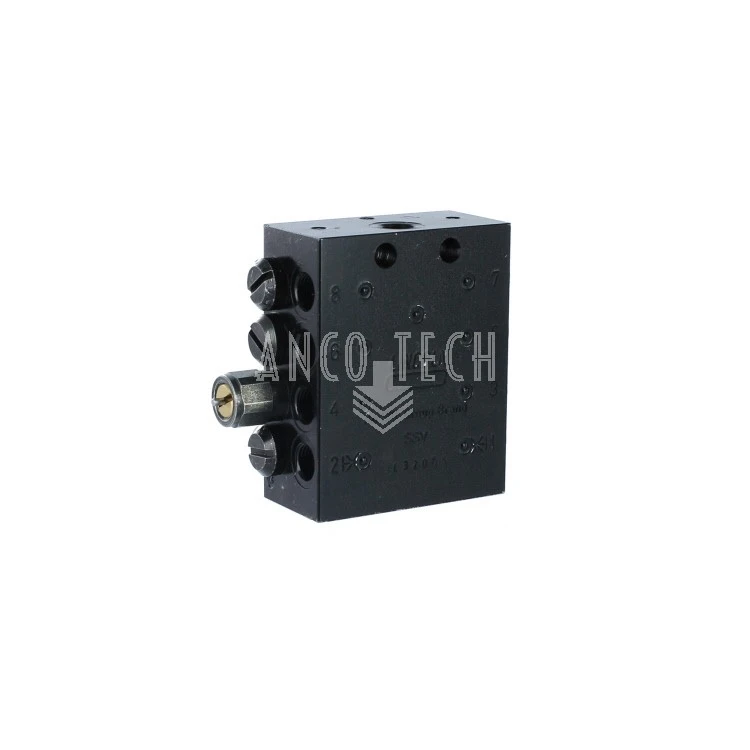

Lincoln metering device with indicator pin model SSV8K
8 outlets.
The indicator pin moves whenever the supply of grease has made a full cycle on every outlet of the metering device. In other words, visually monitors the metering's movement.
Use SSV connectors with brass cone only.
Material: Zinc Plated Black.
Important! Outlet number 1 & 2 may not be closed.
Stock quantity: 12
€241.26
Lincoln Metering Device SSV-K with cycle indicator pin | |
Model | SSV 8 K |
Material | Zinc Plated Black |
Outlets | 8 |
Connection outlet | M10 x 1.0. Use SSV connectors with brass cone |
Connection inlet | 1/8 Gas |

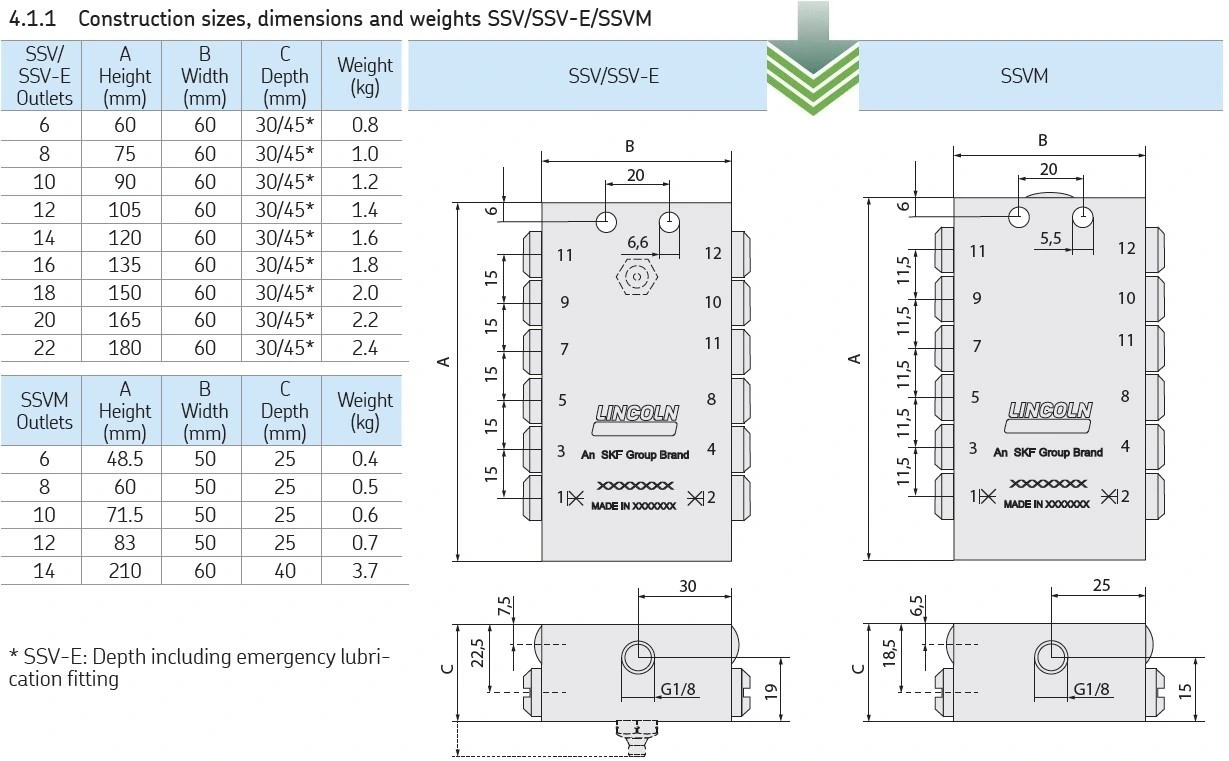

Length A | 75 mm |
Metering quantity per outlet | 0,2 cc per cycle |
Temperature range | -25 to +75°C |
Lincoln Reference | 619-25754-4 |
Manufacturer | Lincoln |
---|
