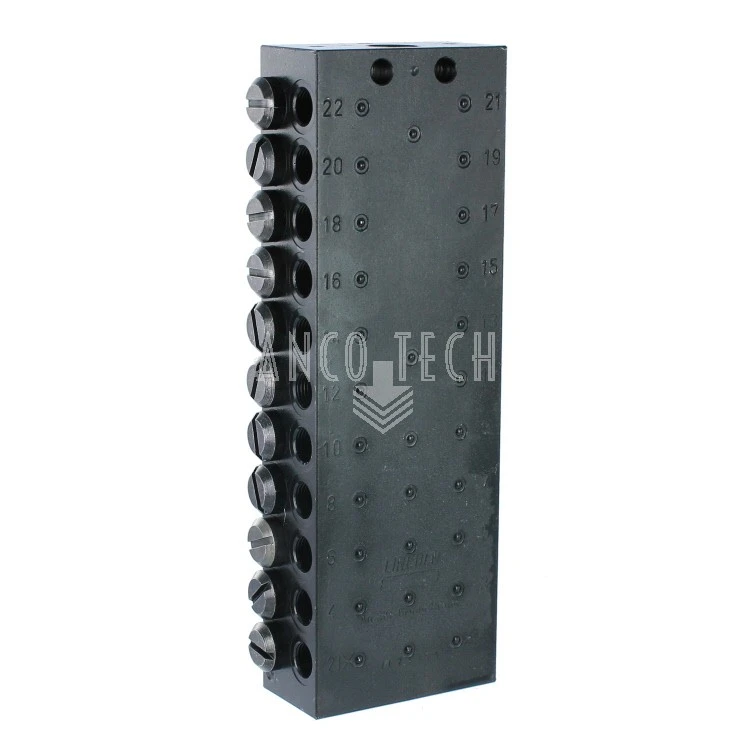

Lincoln metering device model SSV 22
| Lincoln Metering Device SSV | |
| Model | SSV 22 |
| Material | Zinc Plated Black |
| Outlets | 22 |
| Connection outlet | M10 x 1.0. Use SSV connectors with brass cone |
| Connection inlet | 1/8 Gas |

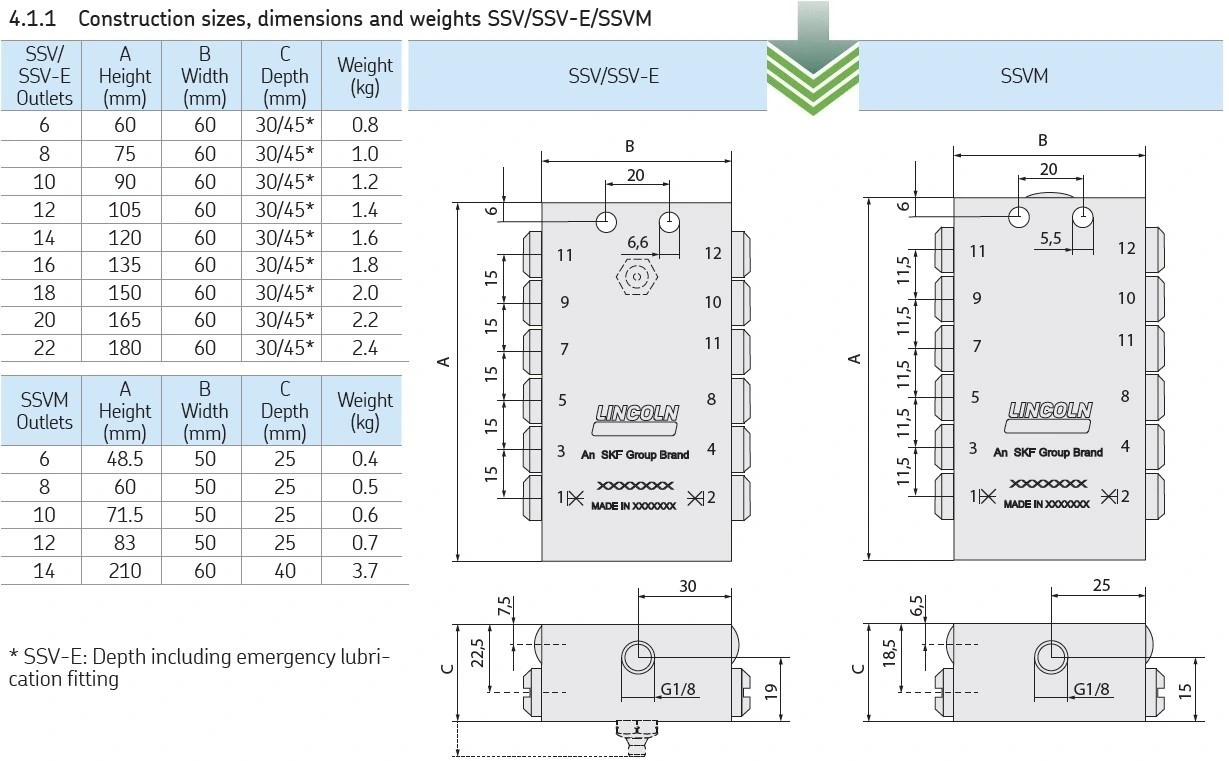

| Length A | 180 mm |
| Metering quantity per outlet | 0,2 cc per cycle |
| Temperature range | -25 to +75°C |
| Lincoln Reference | 619-28866-1 |
Specifications
- SKU 1040585
- HS Code 84799070
- Lincoln Reference 619-28866-1
- Type of progressive divider SSV
- Divider material Steel Zinc plated
