METERING DEVICE SSV 14 K

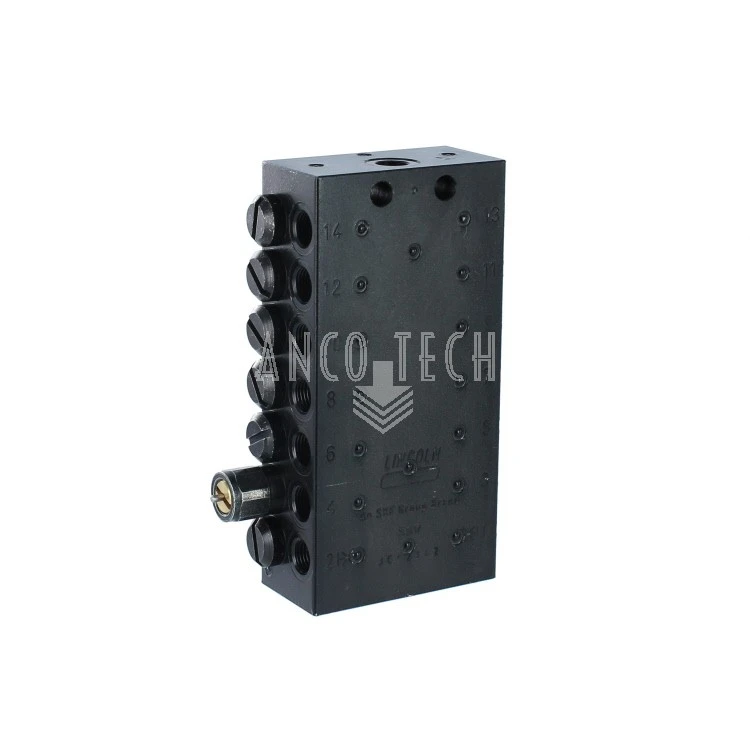

Lincoln metering device with indicator pin model SSV14K
The indicator pin moves whenever the supply of grease has made a full cycle on every outlet of the metering device. In other words, visually monitors the metering's movement.
Use SSV connectors with brass cone only.
Material: Zinc Plated Black.
Important! Outlet number 1 & 2 may not be closed.
Lincoln metering device with indicator pin model SSV 14 K
|Lincoln Metering Device SSV-K with cycle indicator pin|
|Model||SSV 14 K|
|Material||Zinc Plated Black|
|Connection outlet||M10 x 1.0. Use SSV connectors with brass cone|
|Connection inlet||1/8 Gas|

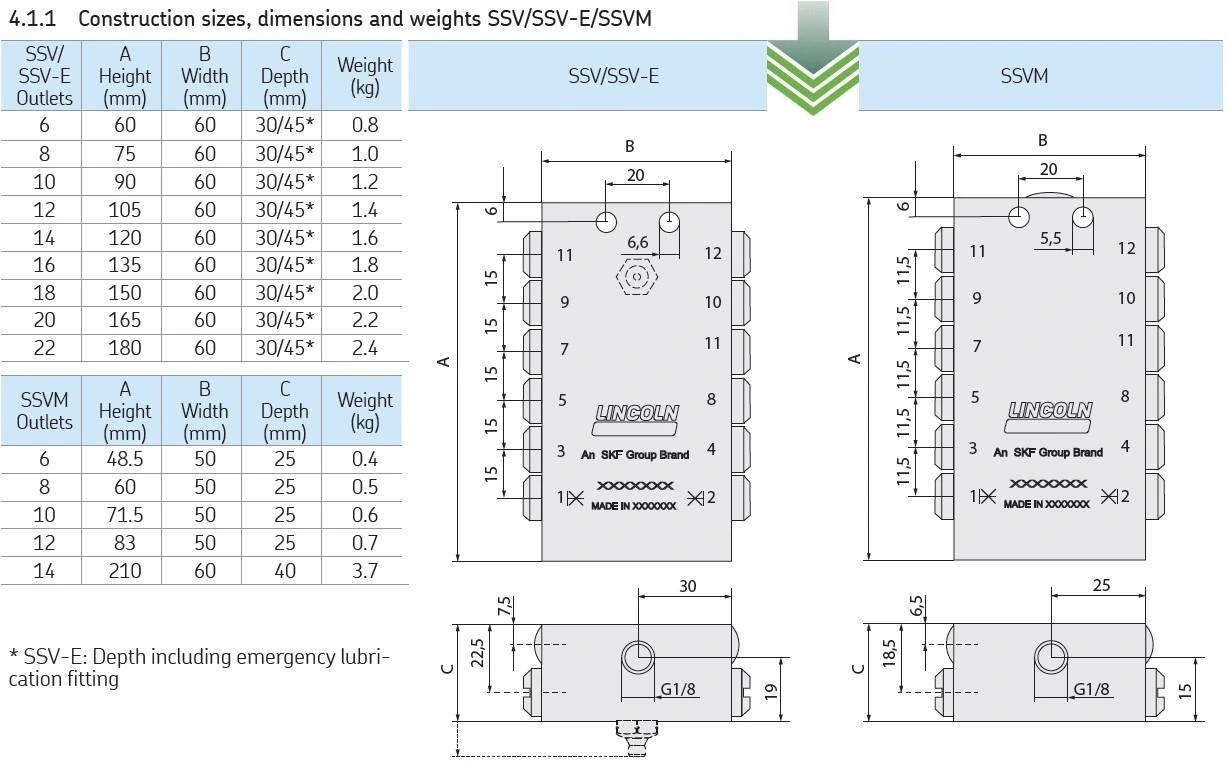

|Length A||120 mm|
|Metering quantity per outlet||0,2 cc per cycle|
|Temperature range||-25 to +75°C|
