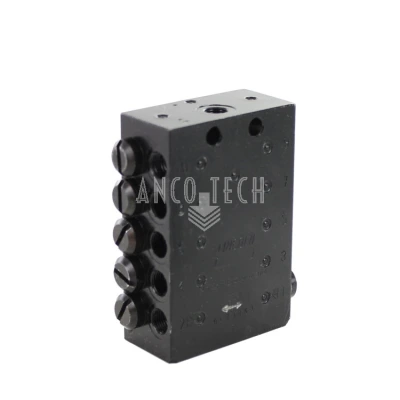

METERING DEVICE SSV 10/9 - V1
Lincoln metering device model SSV 10/9 - V1
9 outlets
The divider has a crossport between outlet 1 & 2, 1 is closed by default. It is possible to assemble a divider with an uneven number of outlets. The output of outlet number 2 is double that of the other outlets.
Use SSV connectors with brass cone only.
Material: Zinc plated black
Important! Outlet number 2 has double the volume compared to nr. 10 t/m 3.
Lincoln metering device SSV | |
Model | SSV 10/9 - V1 |
Material | Zinc plated black |
Outlets | 9 |
Connection outlet | M10 x 1.0 Use SSV connectors with brass cone |
Connection inlet | 1/8 Gas |
Length A | 90 mm |
Output per outlet | 0,2 cc per cycle |
Temperature range | -25 to +75°C |
Lincoln Reference | 619-46199-2 |
