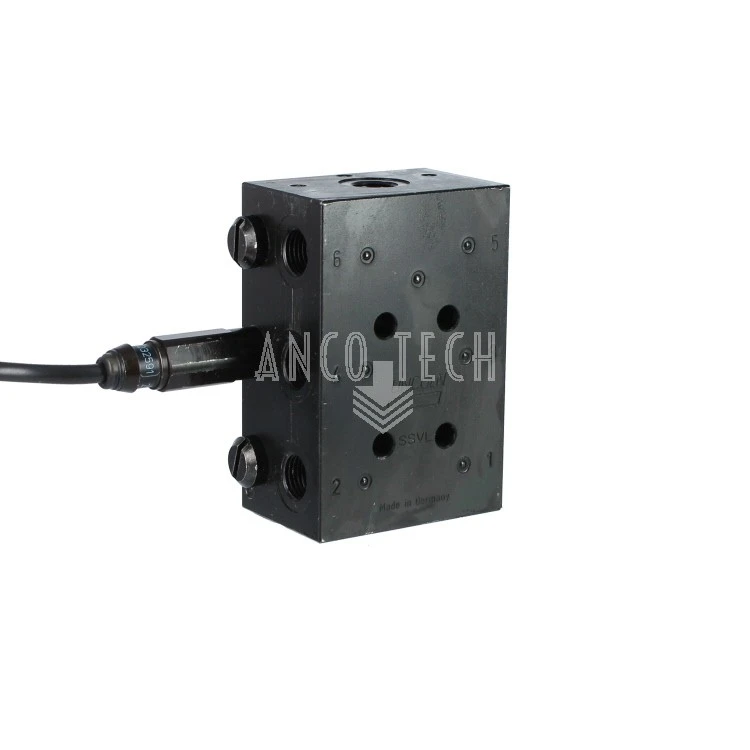

Lincoln metering device with sensor model SSVL 6
| Lincoln metering device SSV including sensor | |
| Model | SSVL 6 N |
| Material | Zinc plated black |
| Outlets | 6 |
| Connection outlet | 1/4 Gas. Use connectors with a check valve only |
| Connection inlet | 1/4 Gas |

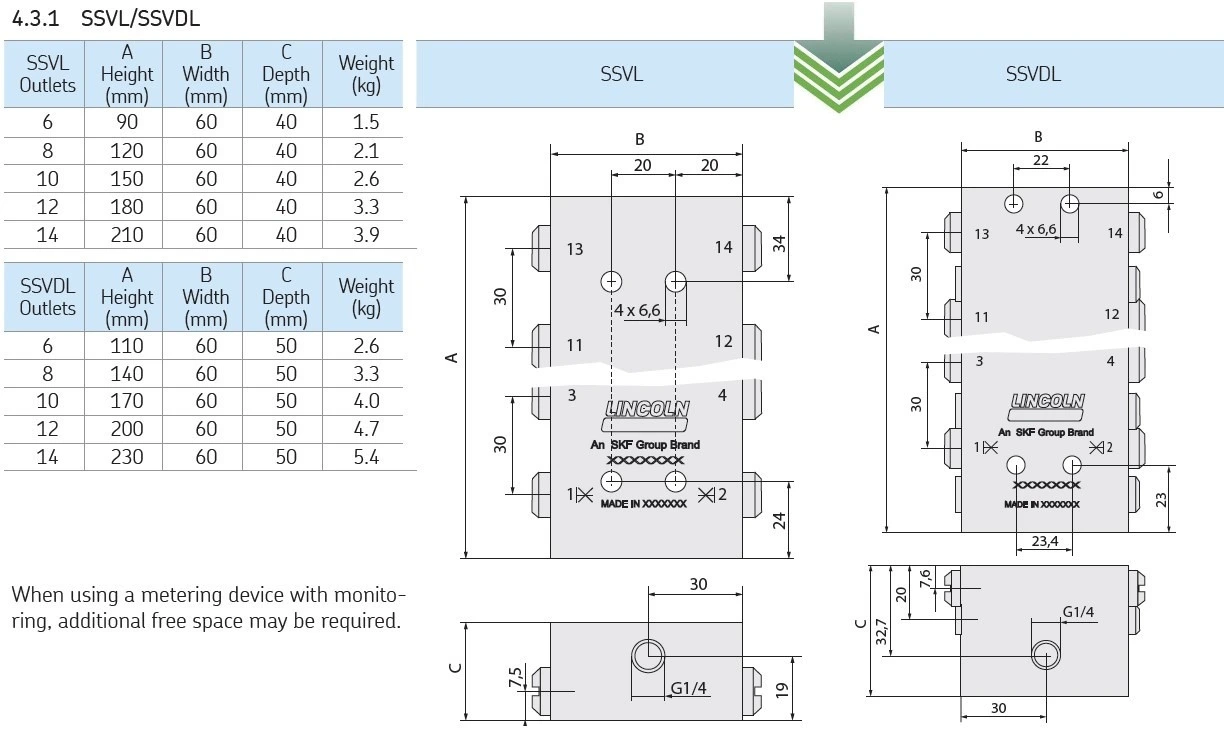

| Length A | 90 mm |
| Metering quantity per outlet | 0,2 cc per cycle |

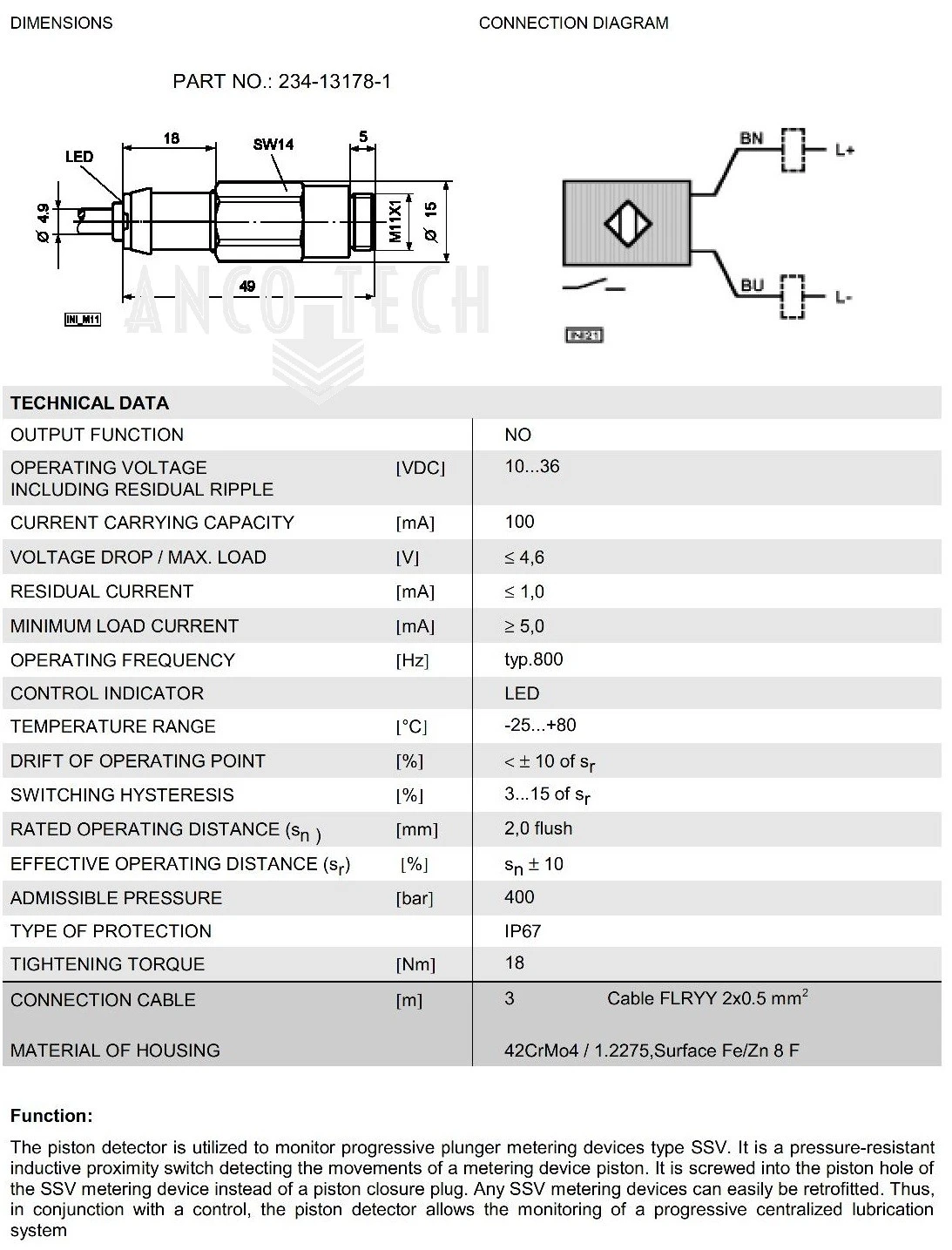

| Sensor | NO 10-36VDC + LED (234-13163-9) |
| Temperature range | -25 to +75°C |
| Lincoln Reference | 619-77293-1 |
Specifications
- ID 490
- SKU 1043200
- Lincoln Reference 619-77293-1
- Divider material Steel Zinc plated
- Type of progressive divider SSVL
- Stock status Out of stock
