METERING DEVICE + SENSOR SSVD 6-NP

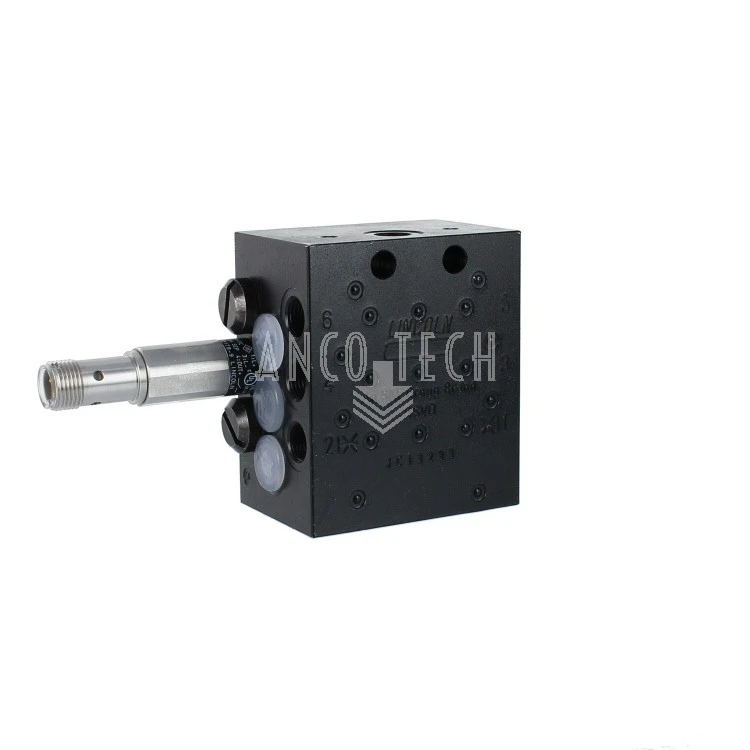

Lincoln metering device with sensor model SSVD 6-NP
This divider with sensor makes it possible to monitor the supply of grease. The sensor wil make contact every time the divider has made a complete lubrication cycle.
6 outlets.
Attention! Order 3 metering screws along with this metering device.
Use connectors with a check valve only.
Material: Zinc plated black.
Important! Outlet number 1 & 2 may not be closed.
Lincoln metering device with sensor model SSVD 6-NP
Lincoln metering device SSVD including sensor | |
Model | SSVD 6 NP |
Material | Zinc plated black |
Outlets | 6 |
Connection outlet | M10 x 1.0 Use SSV connectors with brass cone only |
Connection inlet | 1/8 Gas |

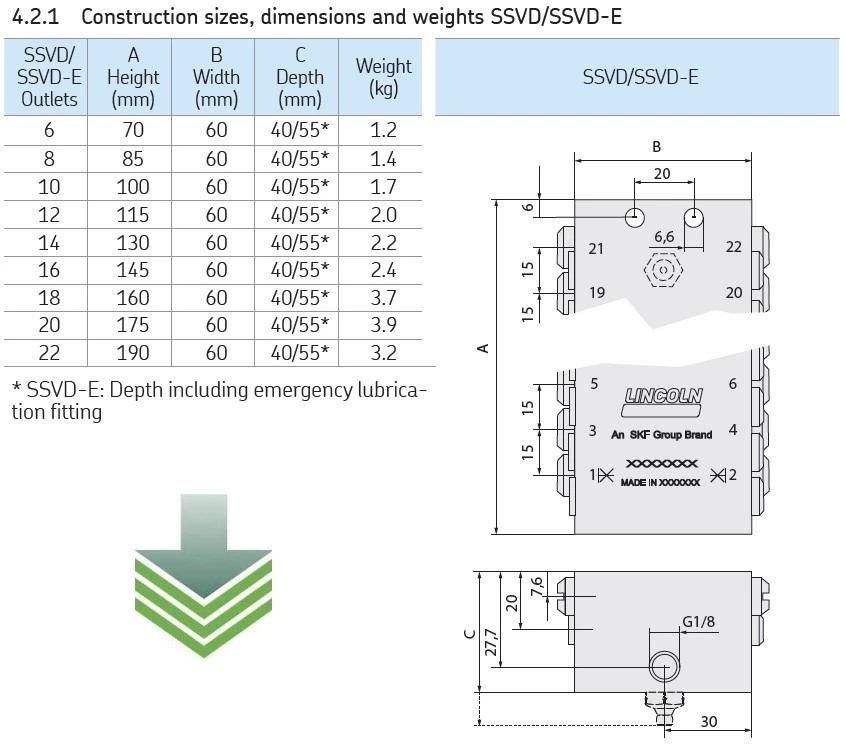

Length A | 70 mm |
Metering quantity per outlet | 0,2 cc per cycle |
Sensor | NO 10-36VDC + LED (234-13163-9) |
Temperature range | -25 to +75°C |
Lincoln Reference | 649-29525-1 |
