METERING DEVICE + SENSOR SSV 8-N

SKU
1040540

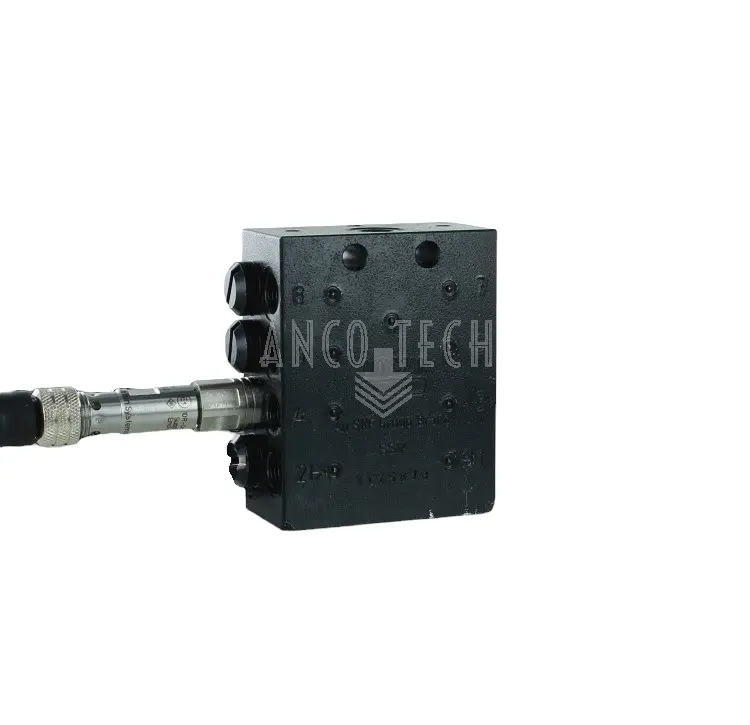

Lincoln metering device with sensor model SSV 8-N

This divider with sensor makes it possible to monitor the supply of grease. The sensor wil make contact every time the divider has made a complete lubrication cycle.

8 outlets.

 Use SSV connectors with brass cone only.

Material: Zinc plated black.

Important! Outlet 1 & 2 may not be closed.

Stock quantity: 1
€753.00
Verzending door DHL

Orders placed on workdays before 15:30 will be shipped the same day.


Lincoln metering device with sensor model SSV 8-N

Lincoln metering device SSV including sensor
Model  SSV 8 N
Material Zinc plated black
Outlets 8
Connection outlet M10 x 1.0 Use SSV connectors with brass cone only
Connection inlet 1/8 Gas

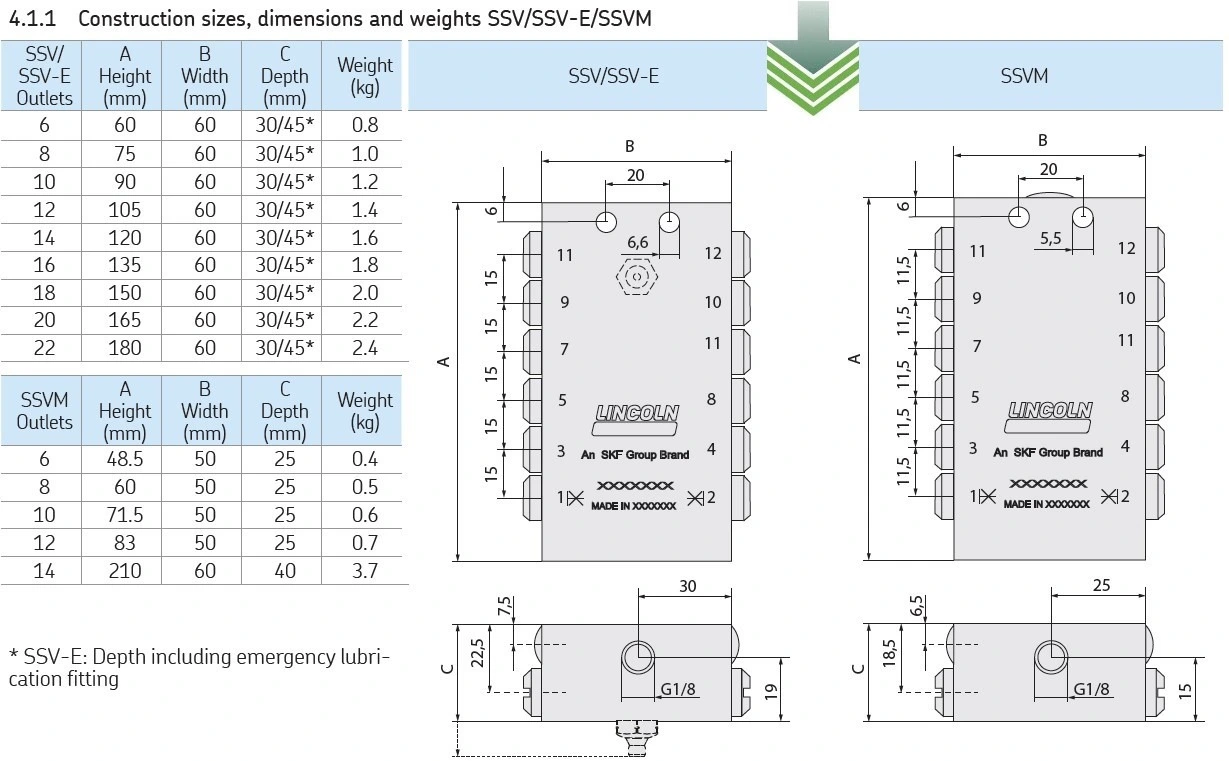

Length A 75 mm
Metering quantity per outlet 0,2 cc per cycle
Sensor NO 10-36VDC + LED (234-13163-9)
Temperature range -25 to +75°C
Lincoln Reference 619-28258-1
