- METERING DEVICE + SENSOR SSV 6-N

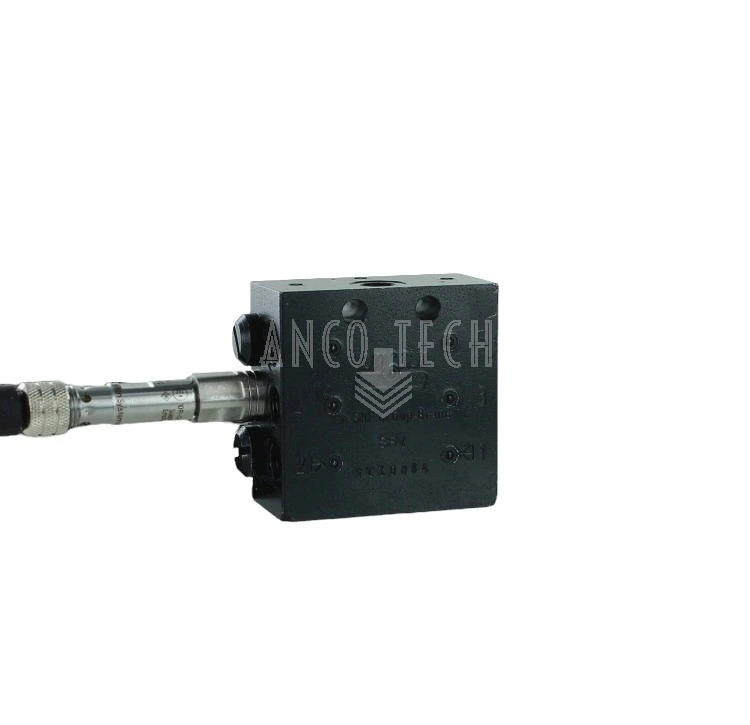

Lincoln metering device with sensor model SSV 6-N
| Lincoln metering device SSV including sensor | |
| Model | SSV 6 N |
| Material | Zinc plated black |
| Outlets | 6 |
| Connection outlet | M10 x 1.0 Use SSV connectors with brass cone only |
| Connection inlet | 1/8 Gas |
| Length A | 60 mm |
| Metering quantity per outlet | 0,2 cc per cycle |
| Sensor | NO 10-36VDC + LED (234-13163-9) |
| Temperature range | -25 to +75°C |
| Lincoln Reference | 619-28257-1 |
Specifications
- ID 484
- SKU 1040535
- Manufacturer Lincoln
- Stock status In stock
