MANUAL PUMP HP -500W SSV6

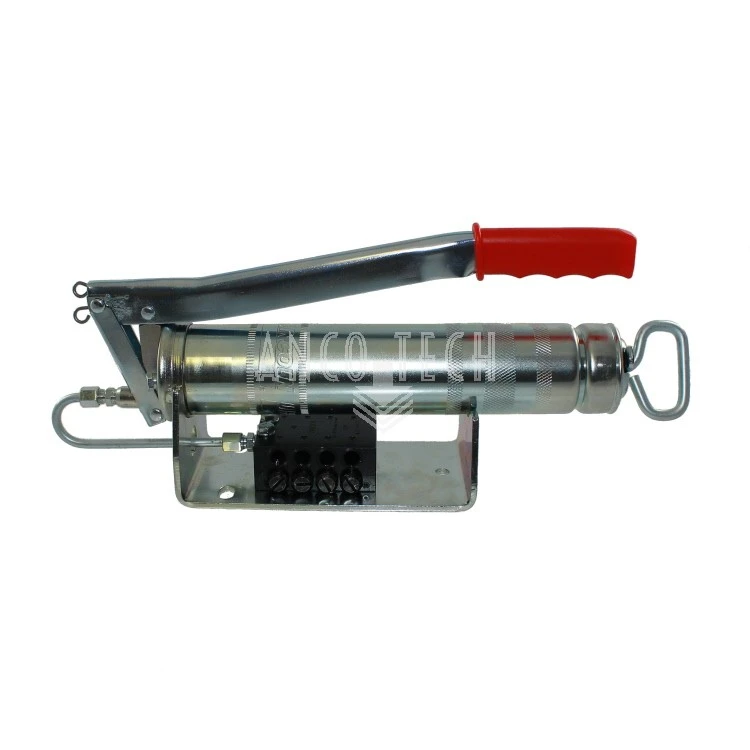

Lincoln grease pump model HP-500W SSV 8
Provided with progressive divider with 8 outlets.
- Suitable for grease NLGI 0, 1 en 2
- Output per stroke 1.5 cc
- 6 outlets
- Output per outlet 0.2 cc per cycle
- Connection M10x1.0. Only use SSV connections with a brass cone.
- Maximum pressure 350 bar
With extra components (see related products), this manual grease pump is also adjustable to an edition with
- 4 outlets. To do this, mount a closing plug on outlet 8, 7, 4 and 3. The pumpoutput will be divided proportionally over outlet 6, 5, 2 & 1.
|Lincoln manual pump|
|Model||HP-500W SSV 8|
|Reservoir capacity||500 cc with cartridge 400 cc|
|For lubricant||Grease class NLGI 0, 1 en 2|
|Output per stroke (pump)||1.5 cc|

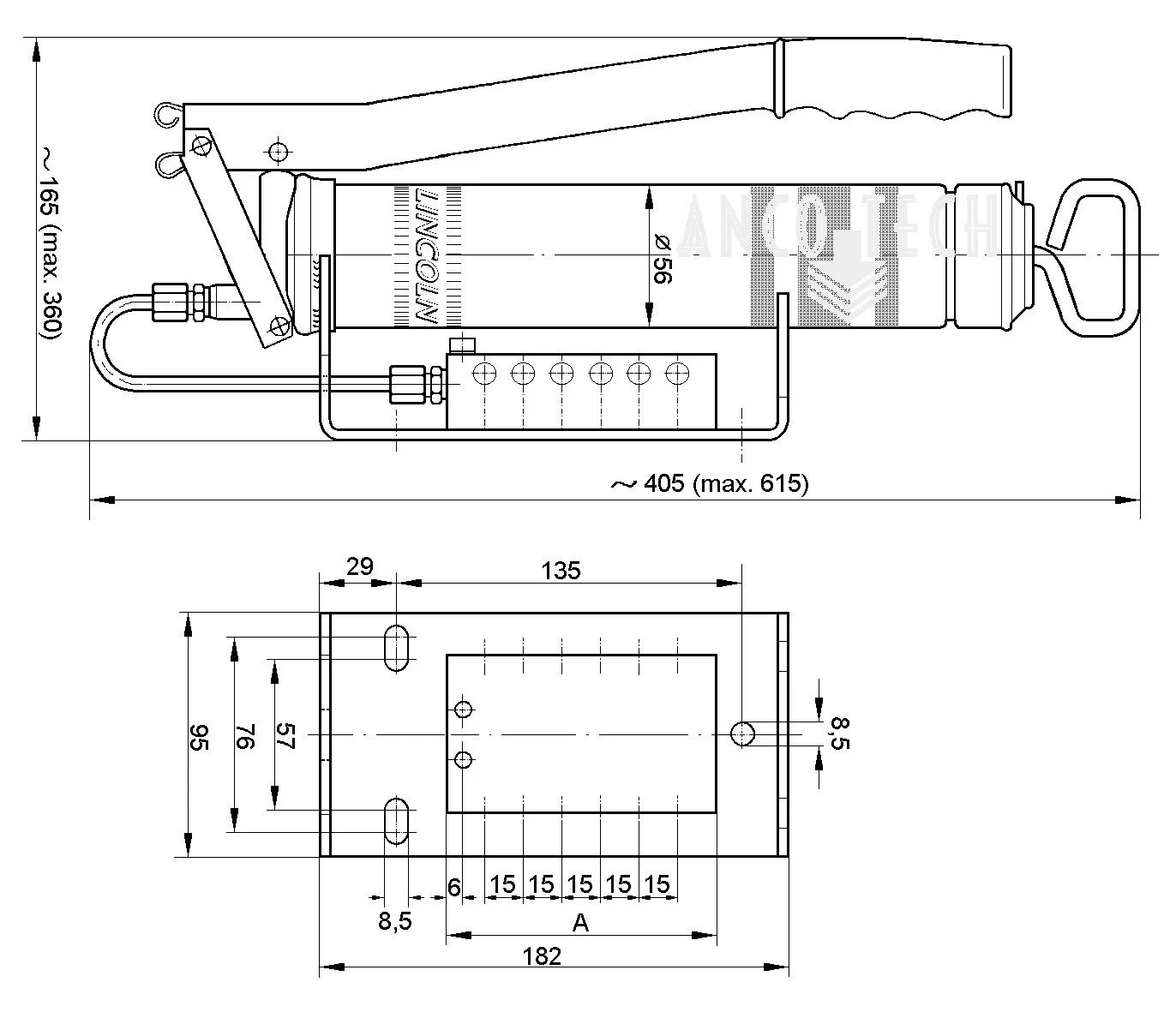

|Length A||75 mm|
|Output per outlet||0,2 cc per cyclus|
|Maximum pressure||350 bar|
