LD GREASE PUMP 50:1 30-110KG

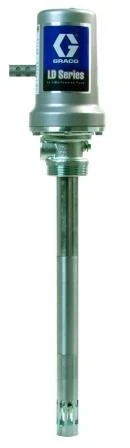

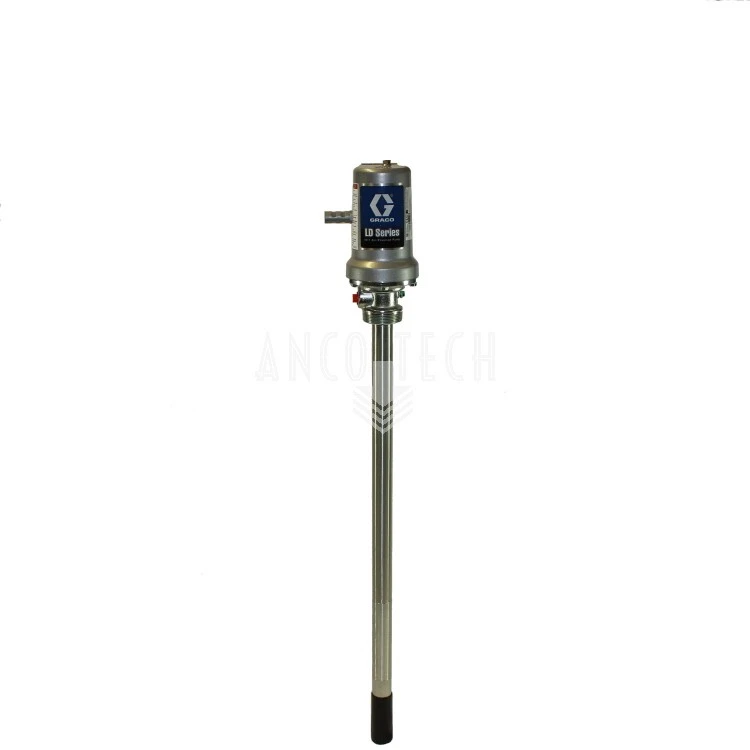

Graco pneumatic grease pump LD 3" model 24G604

Suitable for 30-110kg barrels.

Select a suitable barrel cover and follower plate to make the pump complete and suitable for the right drum.

The barrel cover covers the drum and centers the pumpt so that it is upright in the drum. Measure the outer diameter of the drum top edge for the barrel lid.

The follower plate ensures that the fat is pressed into the drum so that it can be pumped out as well als possible. Measure the inside diameter of the drum for the follower plate.

Stock quantity: 1

Orders placed on workdays before 15:30 will be shipped the same day.

Technical specifications

  • Pressure ratio 50:1
  • Length pump tube 715mm for 30-110kg drum
  • Maximum output at free range 1165 gr/min
  • Output per cycle 9.7 gr
  • Output at 60 cycle per minute 582 gr
  • Maximum air pressure 10.3 bar
  • Maximum outer pressure 517 bar
  • Air connection 1/4BSP
  • Outlet 1/4BSP
