INJECTOR SL-43 4 ASSY 83661-4

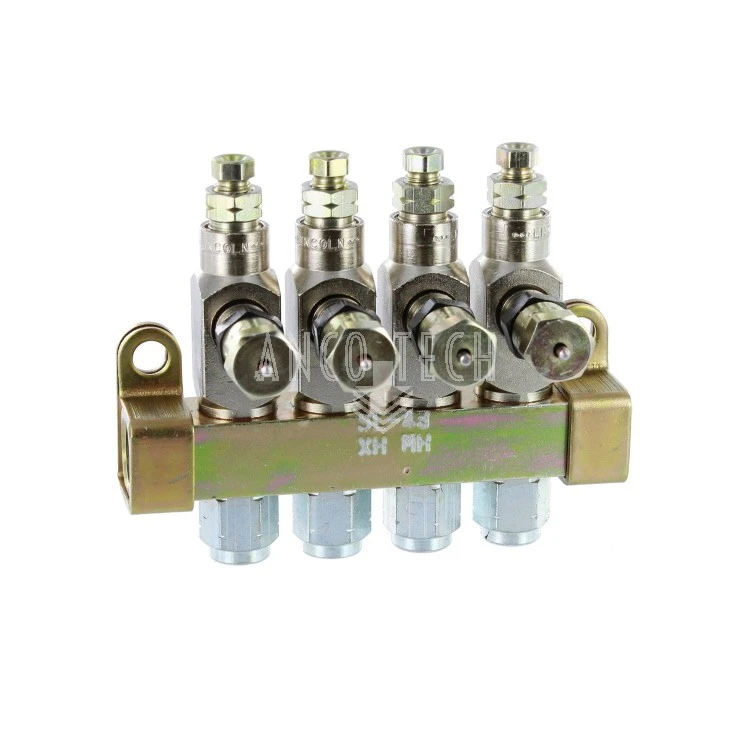

Lincoln Centro-Matic SL43 Oil injector assembly model 83661-4

Suitable for lubrication systems with high pressure single tube.

Output per injector adjustable between 0.016-0.131cc per pump cycle.

Delivery including nut and sleeve for 1/8" tube.

Stock quantity: 1

Orders placed on workdays before 15:30 will be shipped the same day.

Lincoln Centro-Matic Oil injector SL43
Model  83661-4
Material Zinc plated
Amount of injectors 4
Diameter outlet Injector Ø 1/8"
Connection inlet manifold 1/4 NPTF
Height injector 79 mm
Length injector assembly 102 mm
Output adjustable per outlet 0,016-0.131 cc per stroke
Standard operating pressure 59 bar
Minimum operating pressure 52 bar
Maximum operating pressure 69 bar
Temperature range 93°C
Lincoln Reference 83661-4
