INJECTOR SL-43 3-ASSY 84429-3
SKU
1060710

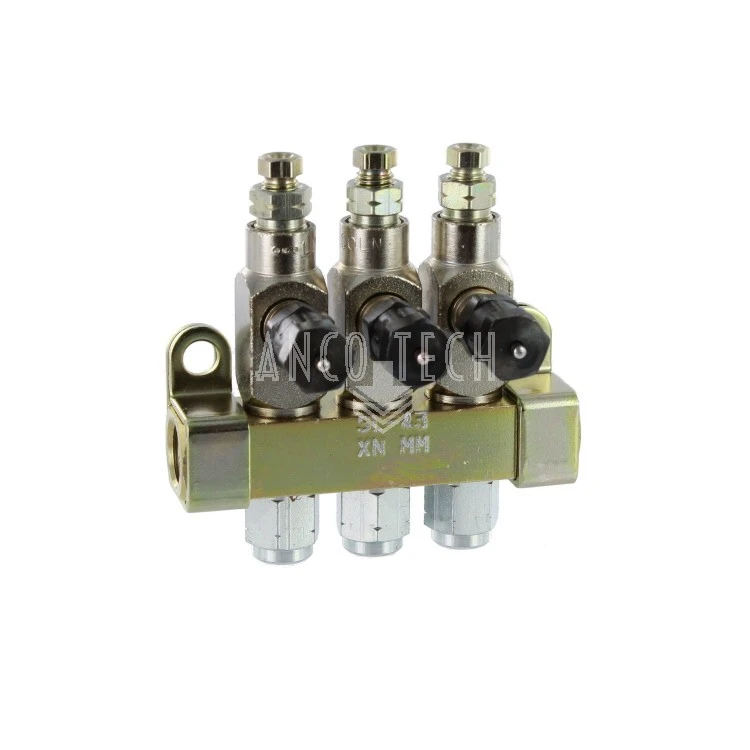

Lincoln Centro-Matic SL43 Oil injector assembly model 84429-3 Heat resistant
Suitable for lubrication systems with high pressure single tube.
Output per injector adjustable between 0.016-0.131cc per pump cycle.
Delivery including nut and sleeve for 1/8" tube.
Stock quantity: 3
€208.63
Lincoln Centro-Matic Oil injector SL43 Heat resistant | |
Model | 84429-3 |
Material | Zinc plated |
Amount of injectors | 3 |
Diameter outlet injector | Ø 1/8" |
Connection inlet manifold | 1/4 NPTF |
Height injector | 79 mm |
Length injector assembly | 83 mm |
Output adjustable per outlet | 0,016-0.131 cc per stroke |
Standard operating pressure | 59 bar |
Minimum operating pressure | 52 bar |
Maximum operating pressure | 69 bar |
Temperature range | 176°C |
Lincoln Reference | 84429-3 |
