INJECTOR SL-43 2-ASSY 83661-2
SKU
1060595

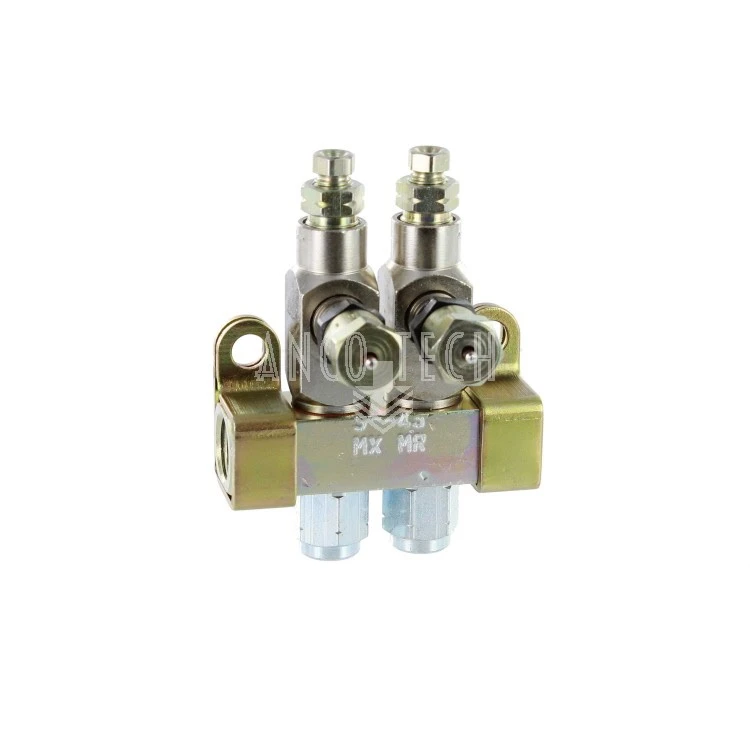

Lincoln Centro-Matic SL43 Oil injector assembly model 83661-2
Suitable for lubrication systems with high pressure single tube.
Output per injector adjustable between 0.016-0.131cc per pump cycle.
Delivery including nut and sleeve for 1/8" tube.
Stock quantity: 4
€132.55
Lincoln Centro-Matic Oil injector SL43 | |
Model | 83661-2 |
Material | Zinc plated |
Amount of injectors | 2 |
Diameter outlet injectors | Ø 1/8" |
Connection inlet manifold | 1/4 NPTF |
Height injector | 79 mm |
Length injector assembly | 63 mm |
Output adjustable per outlet | 0,016-0.131 cc per stroke |
Standard operating pressure | 59 bar |
Minimum operating pressure | 52 bar |
Maximum operating pressure | 69 bar |
Temperature range | 93°C |
Lincoln Reference | 83661-2 |
