INJECTOR SL-42 6-ASSY 84428-6
SKU
1060695

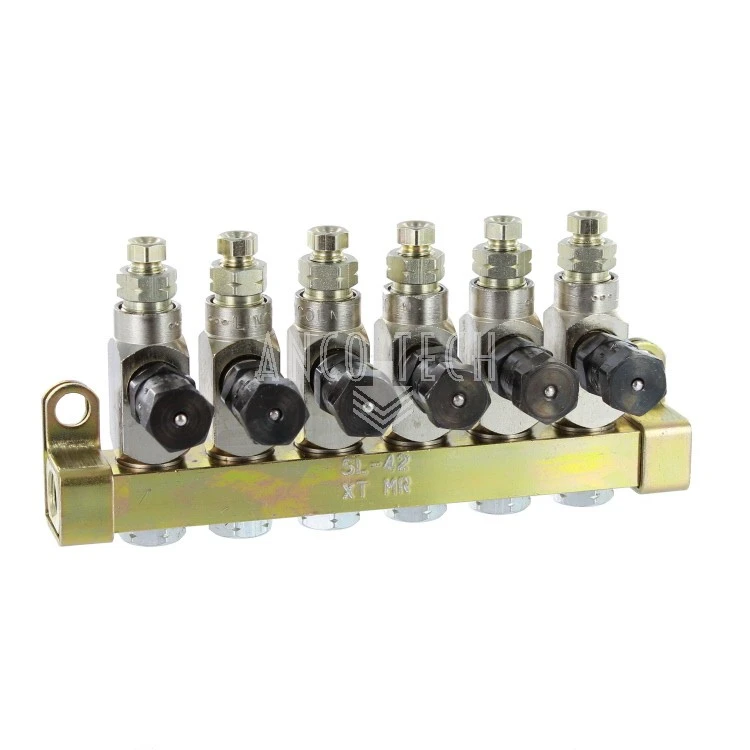

Lincoln Centro-Matic SL42 Oil injector assembly model 84428-6 Heat resistant
Suitable for lubrication systems with high pressure single tube.
Output per injector adjustable between 0.016-0.049cc per pump cycle.
Delivery including nut and sleeve for 1/8" tube.
Stock quantity: 6
€351.95
Lincoln Centro-Matic Oil injector SL42 Heat resistant | |
Model | 84428-6 |
Material | Zinc plated |
Amount of injectors | 6 |
Diameter outlet injector | Ø 1/8" |
Connection inlet manifold | 1/8 NPTF |
Height injector | 62 mm |
Length injector assembly | 137 mm |
Output adjustable per outlet | 0,016-0.049 cc per stroke |
Standard operating pressure | 59 bar |
Minimum operating pressure | 52 bar |
Maximum operating pressure | 69 bar |
Temperature range | 176°C |
Lincoln Reference | 84428-6 |
