INJECTOR SL-42 6-ASSY 83311-6

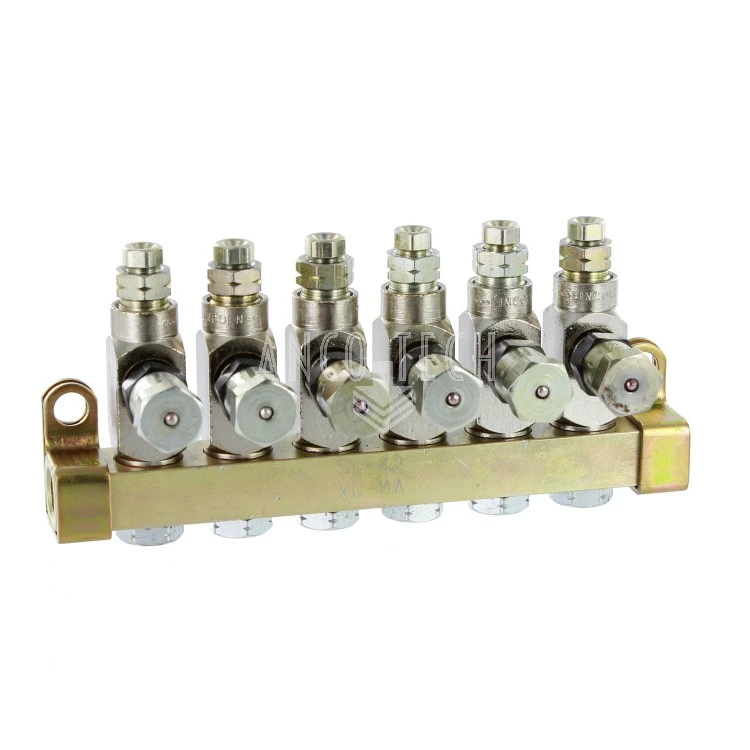

Lincoln Centro-Matic SL42 Oil injector assembly model 83311-6

Suitable for lubrication systems with high pressure single tube.

Output per injector adjustable between 0.016-0.049cc per pump cycle.

Delivery including nut and sleeve for 1/8" tube.

Stock quantity: 9

Orders placed on workdays before 15:30 will be shipped the same day.

Lincoln Centro-Matic Oil injector SL42
Model  83311-6
Material Zinc plated
Amount of injectors 6
Diameter outlet injector Ø 1/8"
Connection inlet manifold 1/8 NPTF
Height injector 62 mm
Length injector assembly 137 mm
Output adjustable per outlet 0,016-0.049 cc per stroke
Standard operating pressure 59 bar
Minimum operating pressure 52 bar
Maximum operating pressure 69 bar
Temperature range 93°C
Lincoln Reference 83311-6
