INJECTOR SL-41 2-ASSY 82294-2

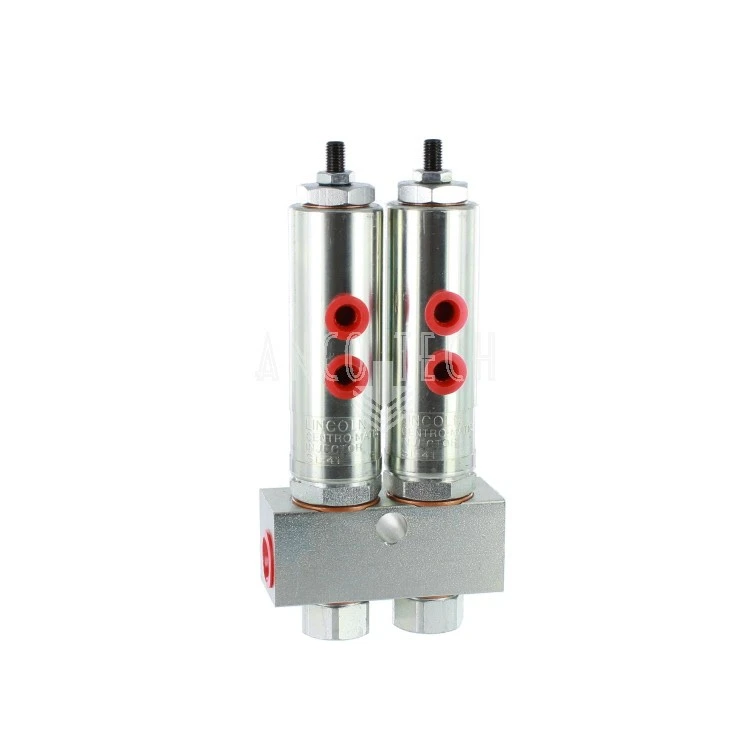

Lincoln Centro-Matic SL42 Oil Injector assembly model 82294-2 heat resistant

Suitable for lubrication systems with high pressure single tube.

Output per injector adjustable between 0.131-1.31cc per pump cycle.

Stock quantity: 2

Orders placed on workdays before 15:30 will be shipped the same day.

Lincoln Centro-Matic Oil injector SL41 heat resistant
Model  82294-2
Material Zinc plated
Amount of injectors 2
Connection outlet injector 1/8 NPTF
Connection inlet manifold 3/8 NPTF
Height injector 163.5 mm
Length manifold 76 mm
Output adjustable per outlet 0,131-1.31 cc per stroke
Standard operating pressure 59 bar
Minimum operating pressure 52 bar
Maximum operating pressure 69 bar
Temperature range 176°C
Lincoln Reference 82294-2
