INJECTOR SL-33 3-ASSY 83309-3

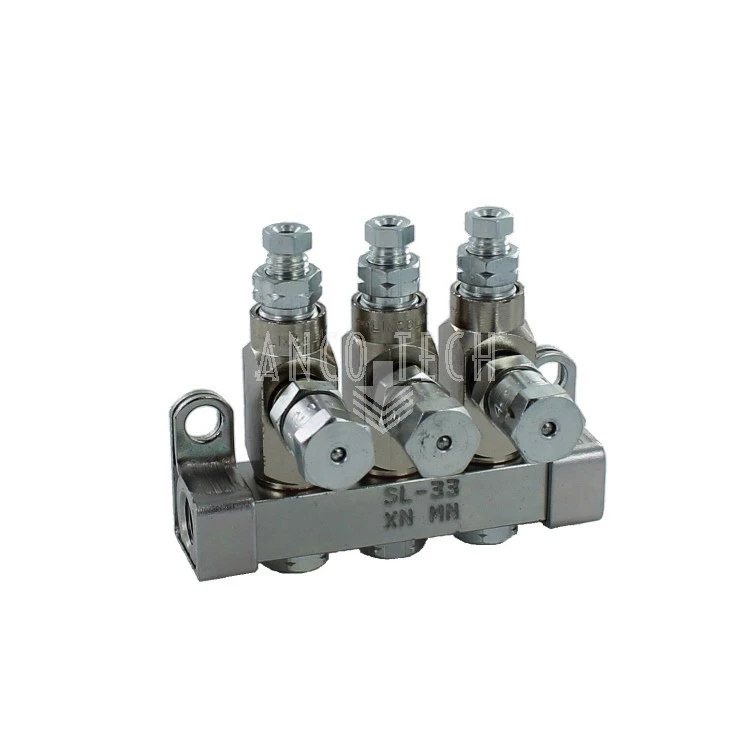

Lincoln Centro-Matic SL33 Grease Injector assembly model 83309-3

Suitable for lubrication systems with high pressure single tube.

Output per injector adjustable between 0.016-0.049cc per pump cycle.

Delivery including nut and sleeve for 1/8" tube.

Stock quantity: 2

Orders placed on workdays before 15:30 will be shipped the same day.

Lincoln Centro-Matic Grease injector SL33
Model  83309-3
Material Zinc plated
Amount of injectors 3
Diameter outlet injector Ø 1/8"
Connection inlet manifold 1/8 NPTF
Height injector 62 mm
Length assembly 79 mm
Output adjustable per outlet 0,016-0.049 cc per stroke
Standard operating pressure 103 bar
Minimum operating pressure 83 bar
Maximum operating pressure 241 bar
Temperature range 93°C
Lincoln Reference 83309-3
