INJECTOR SL-32 3-ASSY 83336-3

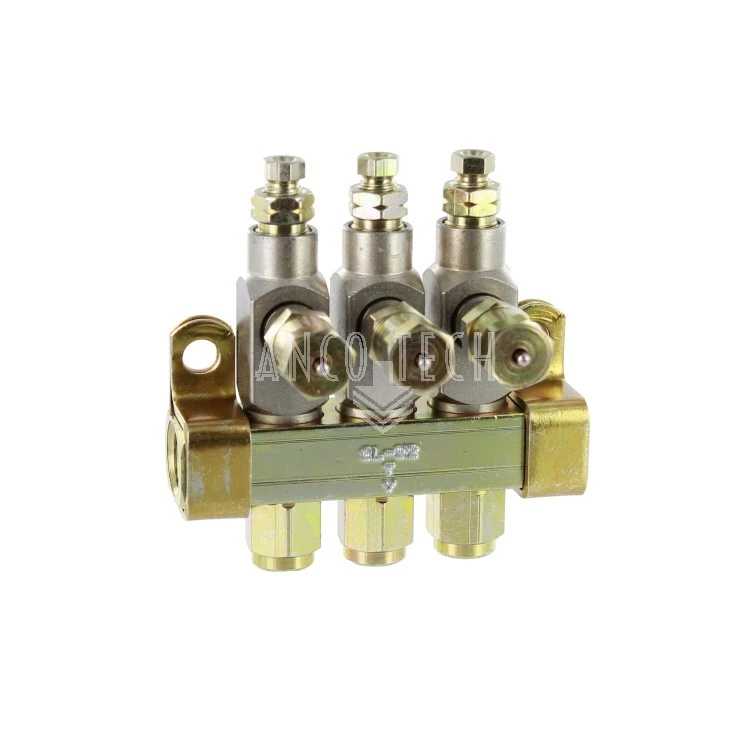

Lincoln Centro-Matic SL32 Grease injector assembly model 83336-3

Suitable for lubrication systems with high pressure single tube.

Output per injector adjustable between 0.016-0.131cc per pump cycle.

Delivery including nut and sleeve for 1/8" tube.

Stock quantity: 4

Orders placed on workdays before 15:30 will be shipped the same day.

Lincoln Centro-Matic Grease injector SL32
Model  83336-3
Material Zinc plated
Amount of injectors 3
Diameter outlet injector Ø 1/8"
Connection inlet manifold 1/4 NPTF
Height injector 79 mm
Length injector assembly 83 mm
Output adjustable per outlet 0,016-0.131 cc per stroke
Standard operating pressure 103 bar
Minimum operating pressure 83 bar
Maximum operating pressure 241 bar
Temperature range 93°C
Lincoln Reference 83336-3
