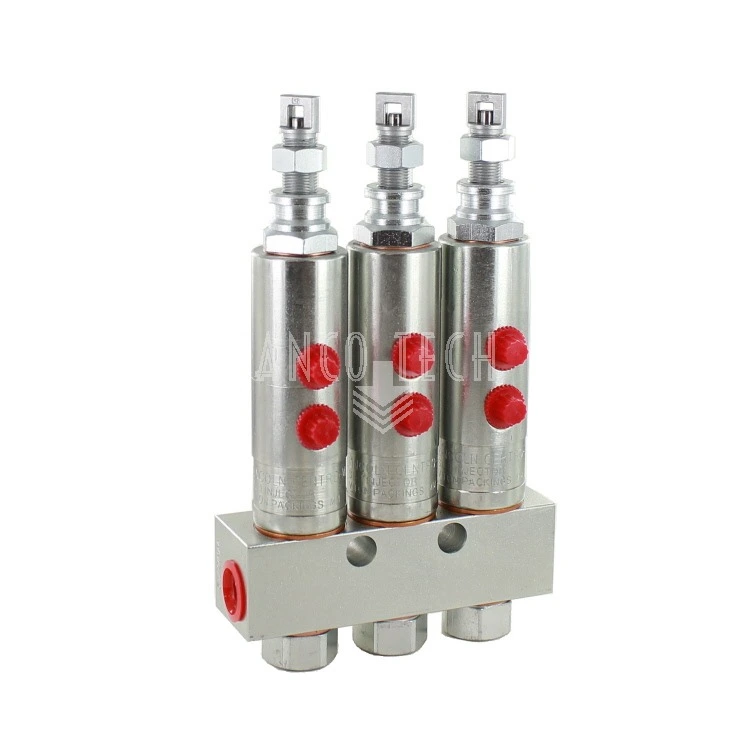

INJECTOR SL-1 3-ASSY 81770-3


Lincoln Centro-Matic SL1 Grease injector assembly model 81770-3 Heat resistant

Suitable for lubrication systems with high pressure single tube.

Output per injector adjustable between 0.016-0.131cc per pump cycle.

Stock quantity: 1

Orders placed on workdays before 15:30 will be shipped the same day.

Lincoln Centro-Matic Grease injector SL1 Heat resistant
Model  81770-3
Material Zinc plated
Amount of injectors 3
Connection outlet injector 1/8 NPTF
Connection inlet manifold 3/8 NPTF
Height injector 179,4 mm
Length injector assembly 106 mm
Output adjustable per outlet 0,131-1.131 cc per stroke
Standard operating pressure 172 bar
Minimum operating pressure 127 bar
Maximum operating pressure 241 bar
Temperature range 176°C
Lincoln Reference 81770-3
