- P203 LINCOLN GREASE PUMP 2L 24V
Lincoln Grease pump

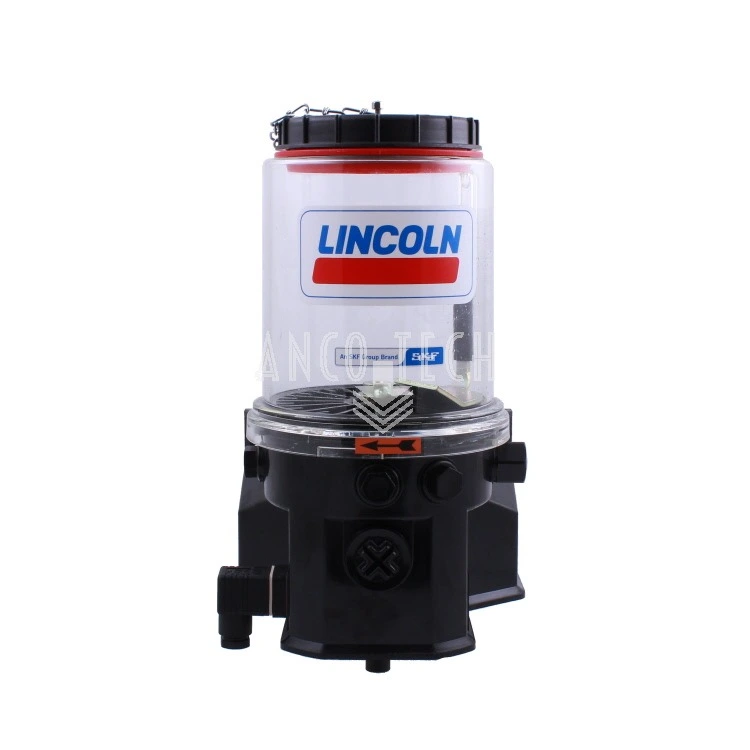

Lincoln Grease Pump Quicklub P203
| Model | P203_E-_2XNBO-600-24-11000000-___A |
| Model (old) | P203- 2XNBO-1K6-24-1A1.01 |
| Reservoir size | 2 Liter |
| For lubricant | Grease to class NLGI-2 |
| Low level signal | No |
| Reservoir type | Screw top |
| Pump elements | 1 x K6 |
| Supply voltage | 24V DC |
| Electrical connection | Left side, power supply Right side, none |
| Connector | Square Form A DIN 175301-803 |
| Timer | No |
| Lincoln Reference | 644-40540-1 |
| Manual | 951-171-021-EN |
Specifications
- ID 2877
- SKU 1040991
- Manufacturer Lincoln
- Power supply 24V
- Lincoln Reference 644-40540-1
- Maximum pressure (bar) 350
- Material to be pumped Grease
- Model P203_E-_2XNBO-600-24-11000000-___A
- Pump element(s) 1 x K6
- Suitable for grease up to class NLGI-2
- Stock status Out of stock
- Connector Vierkant Form A DIN 175301-803
- Electric connections Linkerzijde, Voeding | Rechterzijde, Geen
- Model (old) P203- 2XNBO-1K6-24-1A1.01
Below you will find the downloads and documents. These are manuals or pictures that explain the product.
Manuals
Data Sheet
