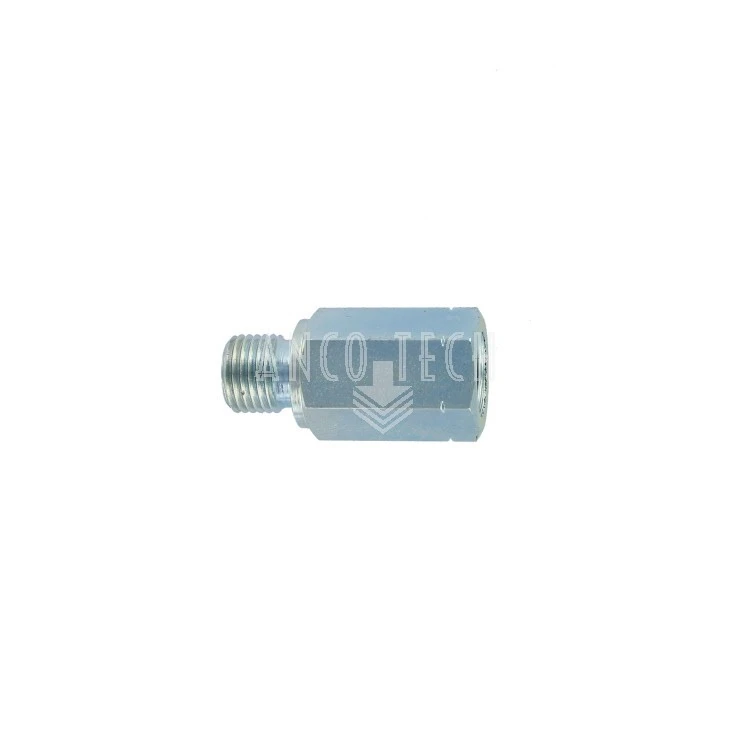

EXTENSION ADAPTER BSP 1/4 M X 1/4 BSP F L=42MM

In stock

13 in stock

€3.70

Excl. vat

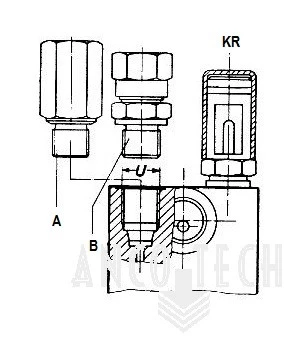

To be used as an extension nipple for VSKH/VSG-KR two-line distributors. By using an Extension Nipple (A), the union nut of the cutting ring coupling (B) can be easily tightened above the KR sleeve in case of wall mounting.

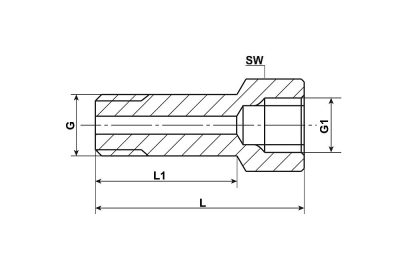

Specifications

ID 593
SKU 1150120
Screw-in thread G1 1/4 BSP
Coupler material Zinc plated
Fittings thread G 1/4 BSP
Length L (mm) 46
Lincoln Reference 420-22139-1
HEX size SW 19 mm
Length L1 (mm) 11
Stock status In stock
