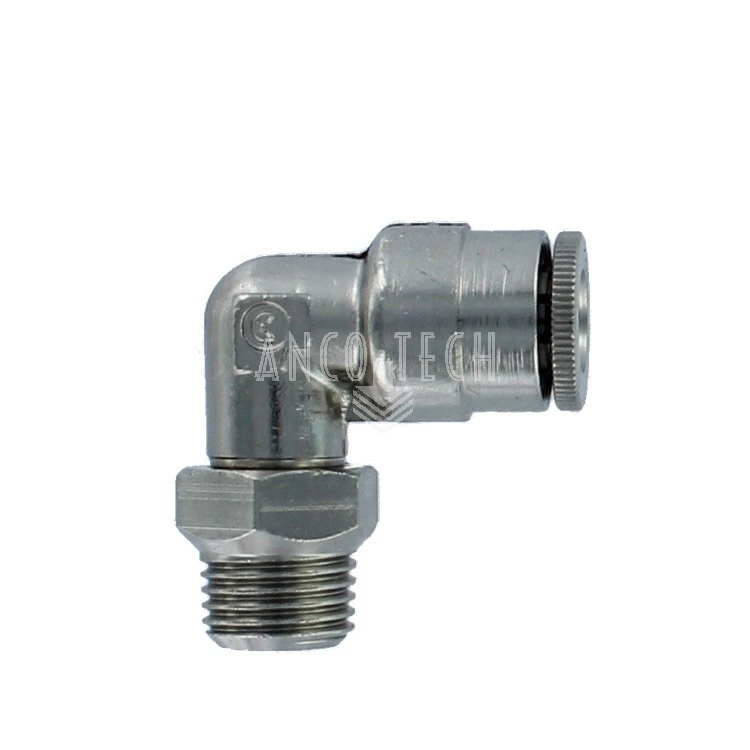

ELBOW PUSH-IN CONNECTOR WEDK6 M10x1 ROTATABLE
SKU
1142085
Elbow push-in connector rotatable WEDK6 M10x1
Developed for use in automated lubrication applications in combination with PA tube.
Stock quantity: 194
€6.88
Elbow push-in connector rotatable WEDK6 M10x1
| Quicklinc™ Push-in connector for PA tube | |
| Model | WEDK 90° Angled Rotatable |
| Knurled collar | Standard for PA |
| Material | Nickel-plated brass |
| Diameter | Ø 6 mm |

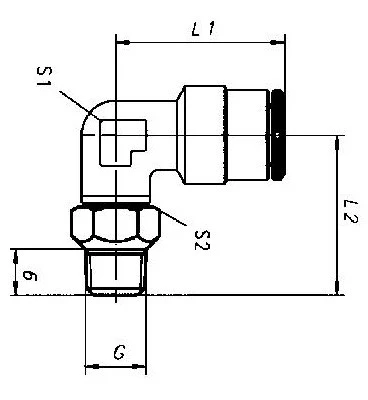

| Thread size G | M10 x 1.0 |
| HEX size S1 | 12 mm |
| Length L1 | 22 mm |
| Height L2 | 21 mm |
| Thread Length | 6 mm |
| Lincoln Reference | 226-13753-5 |
