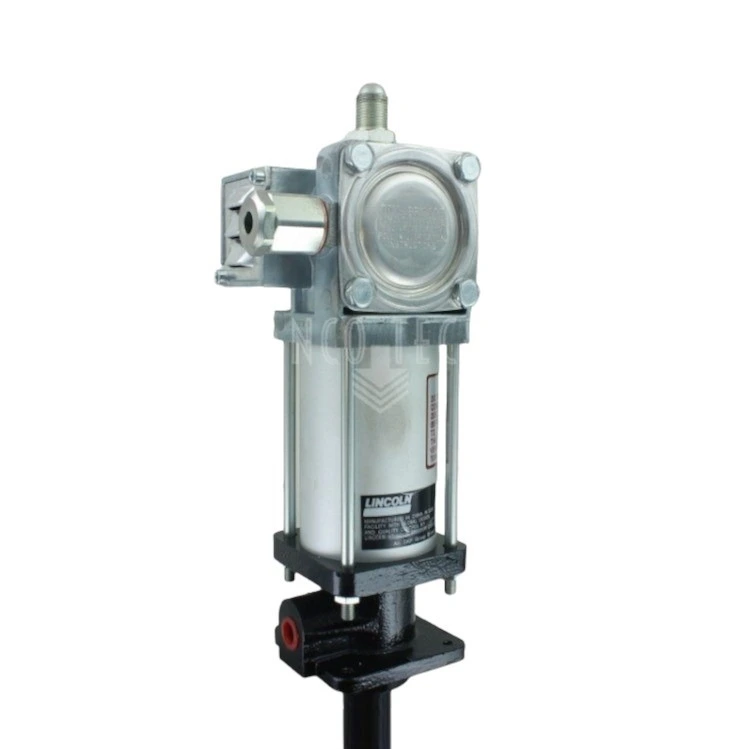

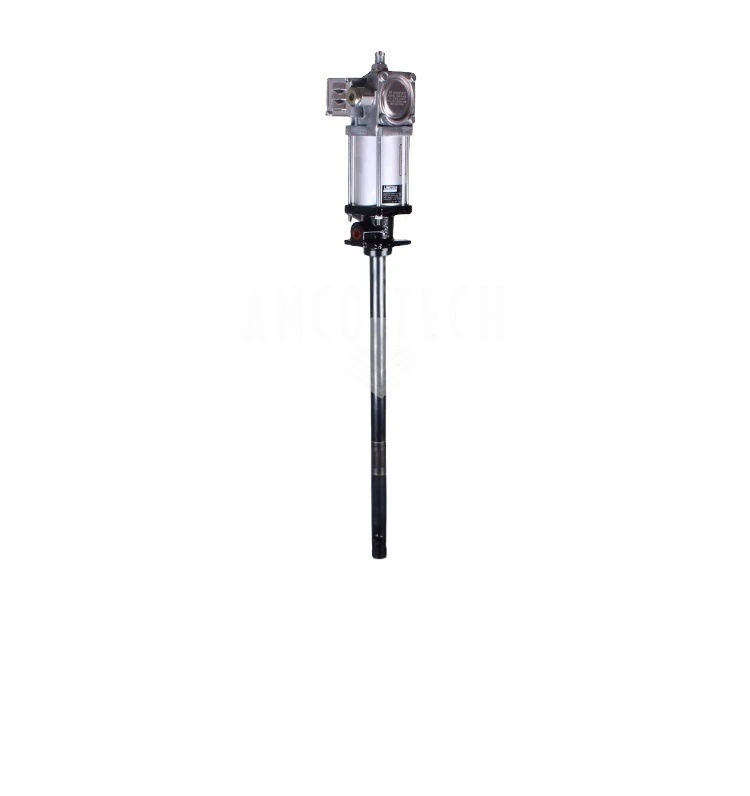

- LINCOLN GREASE PUMP 83513 50:1 0.4 LPM 25KG
Technical specifications
- Pressure ratio 50:1
- Pump tube length 480mm
- Maximum output at 120 cycles per minute 0.7 L/min
- Output per cycle 5.7cc
- Output at 75 cycles per minute 0.43 liter
- Maximum air pressure 10.0 bar
- Maximum outgoing pressure 500 bar
- Air connection 1/4NPT
- Outlet 1/4NPT
Specifications
- ID 3777
- SKU 1100955
- Lincoln Reference 83513
- Brand Lincoln
- Material to be pumped Grease
- Stock status Out of stock
Below you will find the downloads and documents. These are manuals or pictures that explain the product.
Manuals
