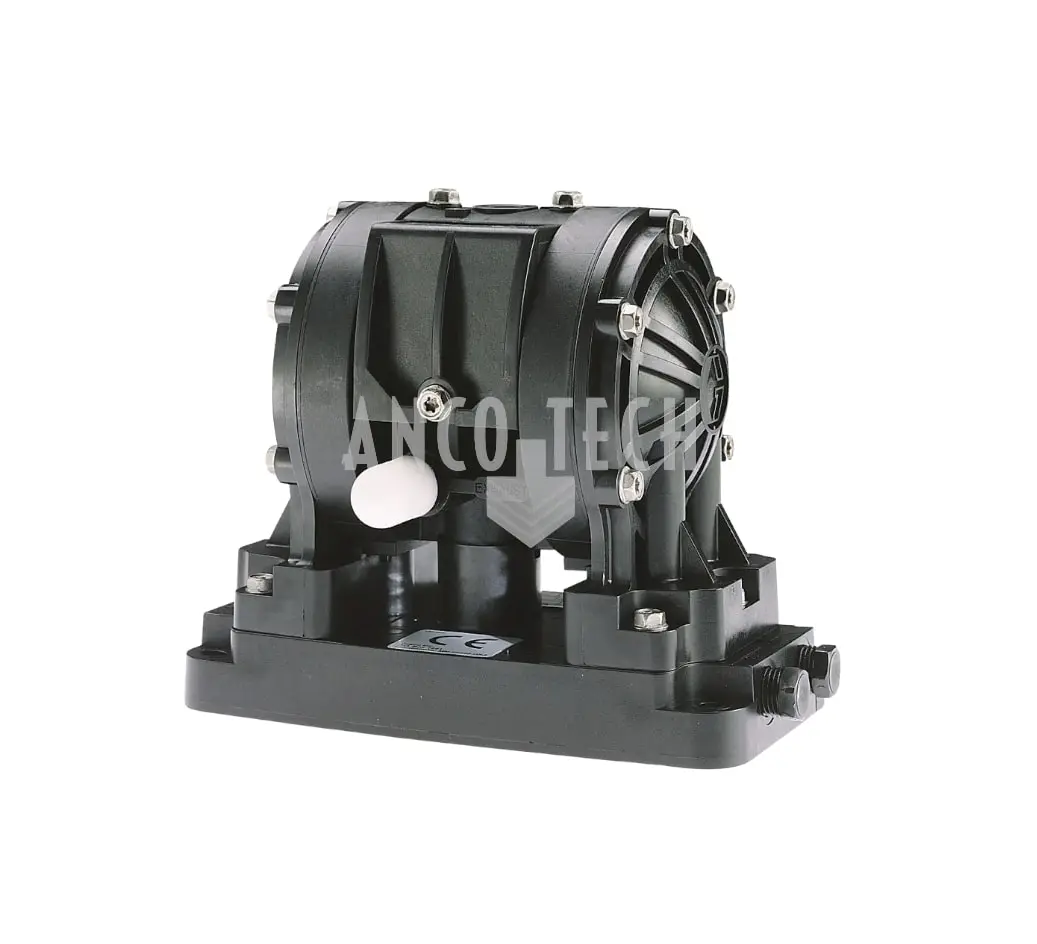

HUSKY 205 1/4" DIAPHRAGM PUMPS D11021
Graco diaphragm pump HUSKY 205, AC, AC, PTFE 1/4 NPT/BSP
The Husky 205 diaphragm pump from Graco has a pressure ratio of 1:1. The pump is extremely suitable for pumping chemical liquids such as paint, thinners, glues and possibly polluting liquids. This air-driven membrane pump is provided with two pump chambers that are connected to each other with a common inlet and outlet. The pump has a seat and poppet valve made of acetal.
The linear movement of the diaphragm creates a vacuum in the pump chamber. As a result, the material is sucked in and it is brought further through the ball valve.
Type number D11021
Possible
|
To be pumped
|
Graco diaphragm pump HUSKY 205, AC, AC, PTFE 1/4 NPT/BSP
Graco Diaphragm Pump |
|
Model | Husky 205 |
Type | D11021 |
Maximum workload | 7 bar |
Maximum yield | 19 l/min |
Connection | 1/4 Gas |
Air connection | 1/4 |
Material |
|
Middle section | Polypropylene |
Pump sections | Acetal |
Sessions | None |
Check valves | Acetal |
Diaphragms | PTFE |
