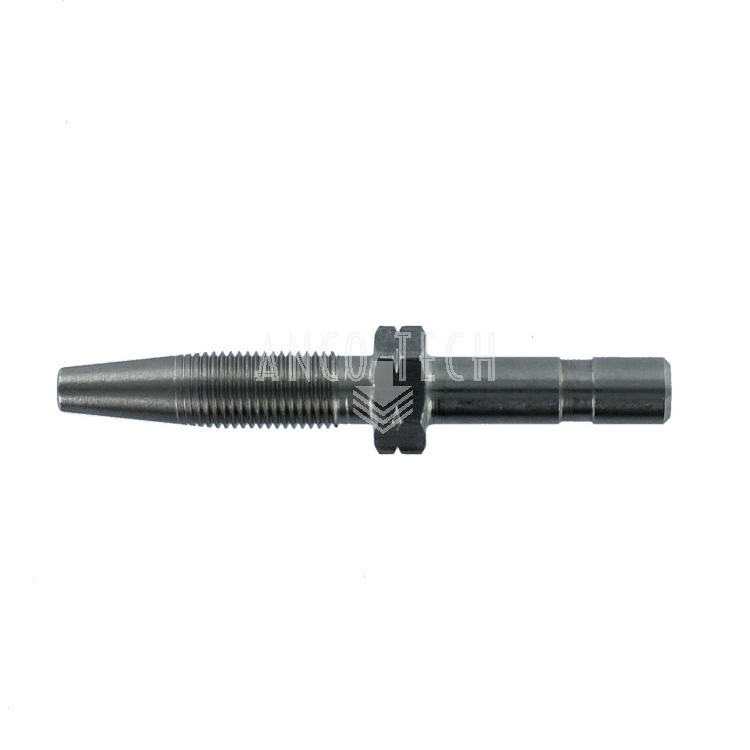

Hose stud with Quicklinc claw groove SS 6mm straight for high pressure hose 8.6x4
| Hose stud straight for high pressure hose 8.6x4 | |
| Material | SS 316 |
| Operating pressure | 350 bar |
| Bursting pressure | Min. 600 bar at 20°C |

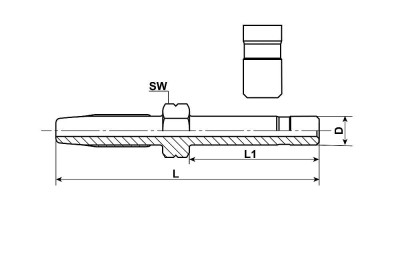

| Diameter da | 6mm |
| HEX size SW | 10mm |
| Length L | 21mm |
| Lincoln Reference | 432-23675-1 |
Specifications
- SKU 1040080
- HS Code 73072910
- Land van herkomst IT
- Lengte L (mm) 52.5
- Lincoln Referentie 432-23675-1
- Lengte L1 (mm) 21.5
- Diameter slang 8.6x4
- Koppeling materiaal Stainless steel 316
- Leiding diameter D 6
- Sleutelwijdte SW 10 mm
