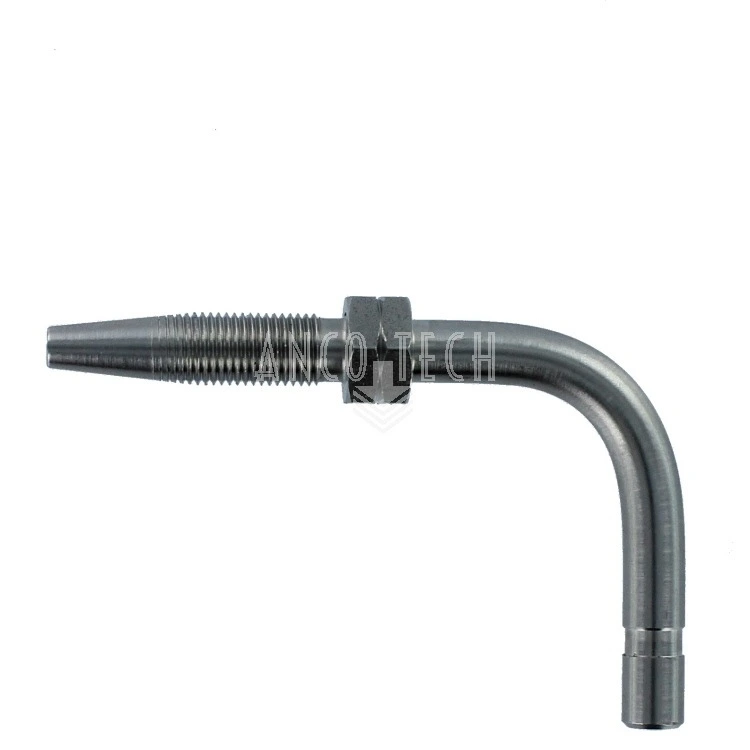

Hose stud with Quicklinc claw groove SS 6mm 90° angle for high pressure hose 8.6x4

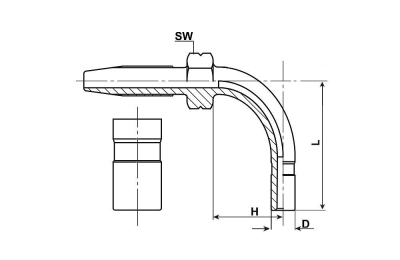

| Hose stud for high pressure hose 8.6x4 | |
| Material | SS 316 |
| Operating pressure | 350 bar |
| Bursting pressure | Min. 600 bar at 20°C |
| Diameter da | 6mm |
| HEX size SW | 10mm |
| Length L | 36mm |
| Height H | 23mm |
| Lincoln Reference | 532-31819-1 |
Specifications
- SKU 1040081
- HS Code 73072910
- Land van herkomst DE
- Lengte L (mm) 37
- Lincoln Referentie 532-31819-1
- Lengte H (mm) 28
- Diameter slang 8.6x4
- Koppeling materiaal Stainless steel 316
- Leiding diameter D 6
- Sleutelwijdte SW 10 mm
