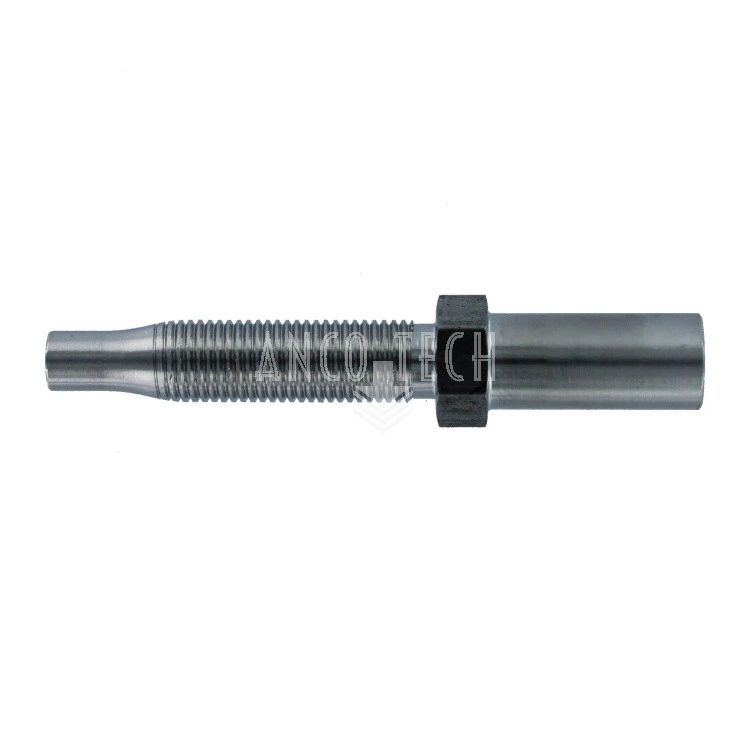

Hose stud SS 10mm straight for high pressure hose 11.3x6.3
| Hose stud for high pressure hose 11.3x6.3 | |
| Material | SS 316 |
| Operating pressure | 350 bar |
| Bursting pressure | Min. 600 bar at 20°C |

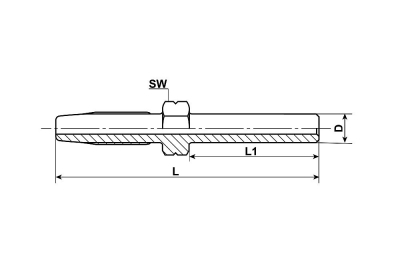

| Diameter da | 10mm |
| HEX size SW | 12mm |
| Length L | 22mm |
Specifications
- SKU 5010124
- Coupler material Stainless steel 316
- Tube diameter D 10
- Diameter hose 11.3x6.3
- Length L (mm) 73.5
- Length L1 (mm) 30
- HEX size SW 12 mm
- HS Code 73072910
- Country of origin DE
