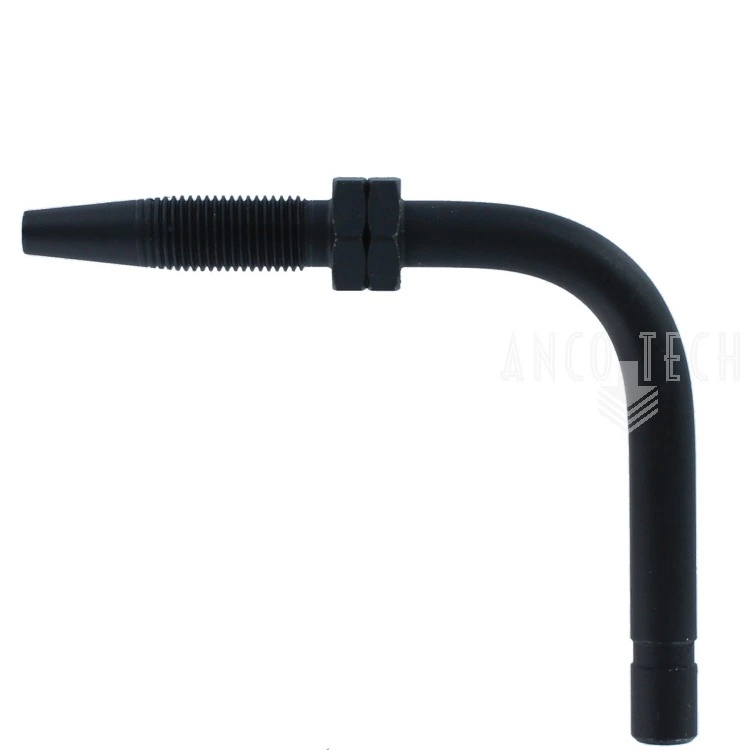

Hose stud with Quicklinc claw groove long 6mm 90° angle for high pressure hose 8.6x4
| Hose stud for high pressure hose 8.6x4 | |
| Material | Zinc Plated black |
| Operating pressure | 350 bar |
| Bursting pressure | Min. 600 bar at 20° C |

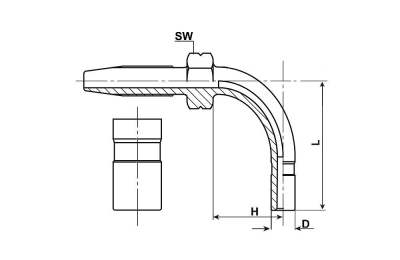

| Diameter da | 6mm |
| HEX size SW | 10mm |
| Length L | 46mm |
| Height H | 23mm |
| Lincoln Reference | 532-30738-1 |
| SKF Reference | 853-390-003 |
Specifications
- SKU 1040140
- HS Code 73072980
- Land van herkomst DE
- Lengte L (mm) 53
- Lincoln Referentie 532-30738-1
- SKF Referentie 853-390-003
- Lengte H (mm) 28
- Diameter slang 8.6x4
- Koppeling materiaal 1042
- Leiding diameter D 6
- Sleutelwijdte SW 10 mm
