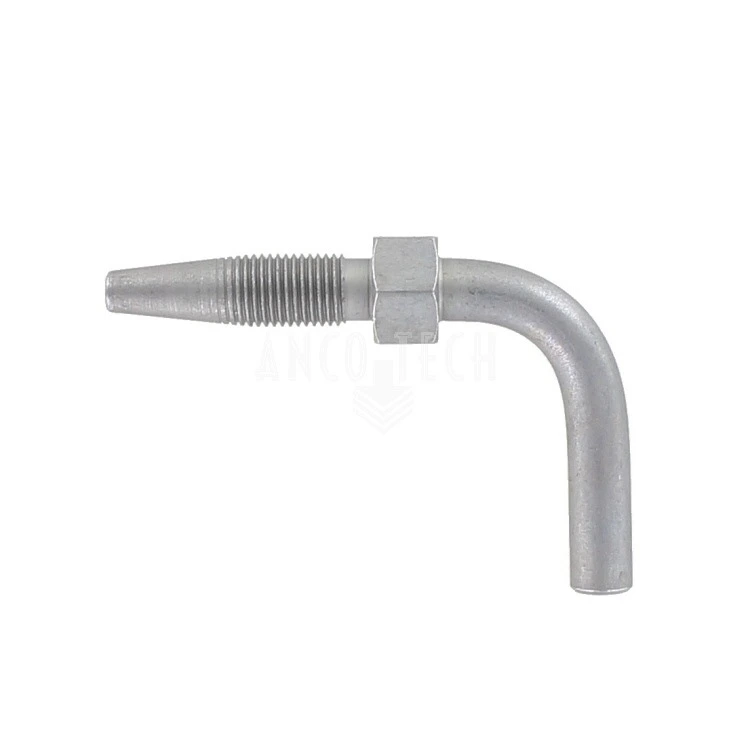

- HOSE STUD EXTRA SHORT 6MM ANGLE FOR HD HOSE 8.6x4

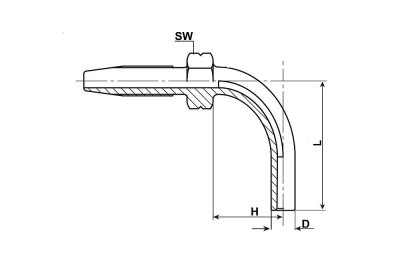

| Pipe end for High Pressure Hose 8.6x4 | |
| Material | Steel Galvanized |
| Workload | 350 bar |
| Burst pressure | Min. 600 bar at 20°C |
| Diameter da | 6mm |
| Key width SW | 10mm |
| Length L | 29mm |
| Height h | 15mm |
| SKF Reference | 853-380-003 |
Â
Specifications
- SKU 5011496
- SKF Reference 853-380-003
- Coupler material Zinc plated
- Tube diameter D 6
- Diameter hose 8.6x4
- Length L (mm) 21
- HEX size SW 10 mm
- Length H (mm) 13
- HS Code 73079290
- Country of origin DE
