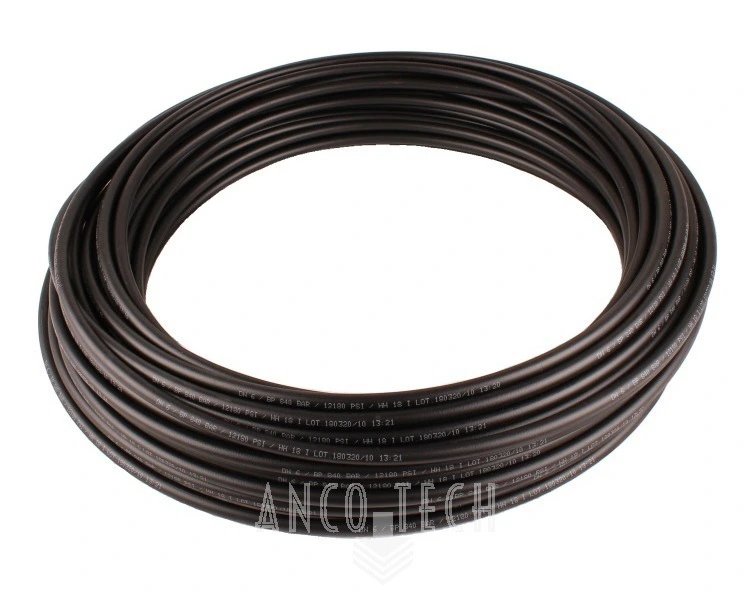

High pressure hose 11.3x6.3 filled with grease

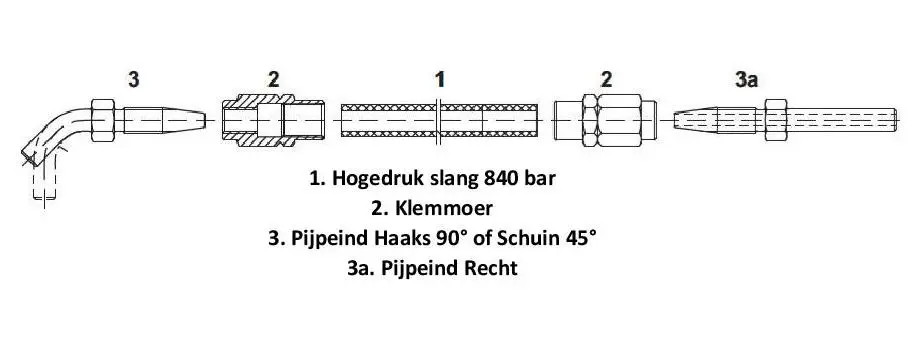

To be used in automated or manual lubrication applications. Easy assembly (without hose crimping) using corresponding two-part couplings.
Price and purchase per meter:
| Inner core | Thermoplastic Polyester Elastomer |
| Reinforcement | High-quality Polyester fibers |
| Outer jacket | Black Polyurethane |
| Dynamic working pressure | 210 bar |
| Static working pressure | 280 bar |
| Burst pressure | >840 bar at 20°C |
| Minimum bending radius | >45mm at 20°C |
| Temperature range | -40°C / 80°C Grease & Oil |
| Filled with NLGI 2 grease | Yes |

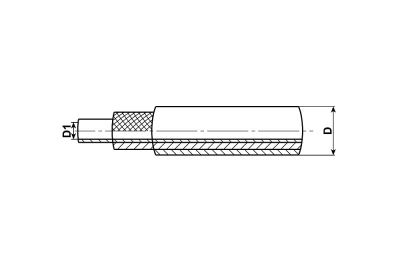

| Inner diameter D1 | 6.3mm |
| Outer diameter D | 11.3mm |
Specifications
- SKU 5010104
- HS Code 39173100
- Country of origin DE
- Diameter hose 11.3x6.3
