HIGH PRESSURE HOSE 8,6x4 GREASE FILLED
SKU
1140191

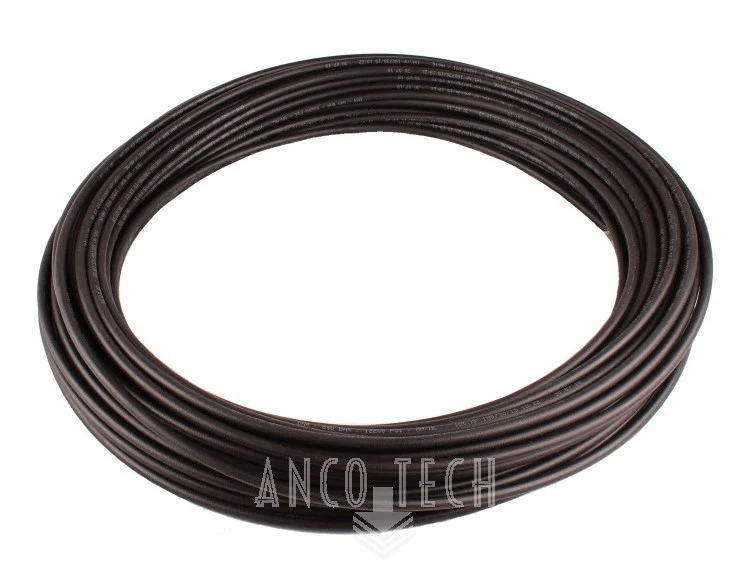

High pressure hose 8.6x4 grease filled

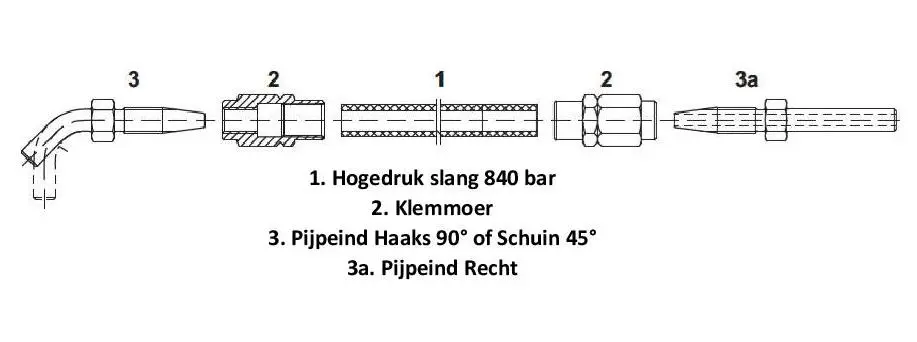

To be used in automated or manual lubrication applications. Easy assembly (without hose press) using associated two part-couplers.
Price and purchase per meter.
Stock quantity: 1198
€5.90
Related Products
High pressure hose 8.6x4 grease filled
| Thermoplastic lubrication hose | |
| Innercore | Thermoplastic polyestere elastometer |
| Pressure reinforcement | High tensile polyestere fiber |
| Outer cover | TPU |
| Operating pressure | 207 bar |

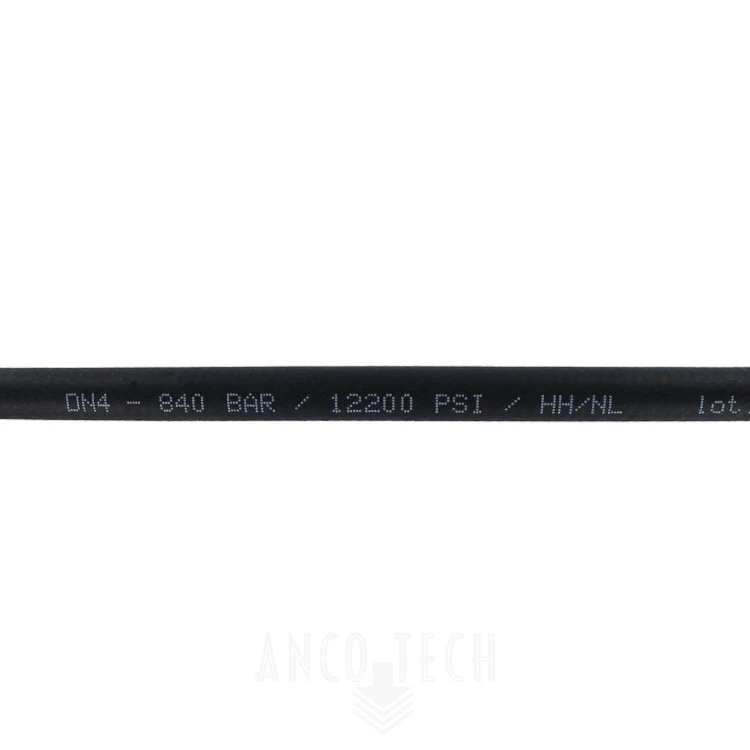

| Burst Pressure Test | Min. 840 bar at 20°C |
| Safety factor | 4:1 |
| Minimum bend radius | 20mm at 20°C |
| Operating temperature | -40°C / 120°C Grease & Oil |

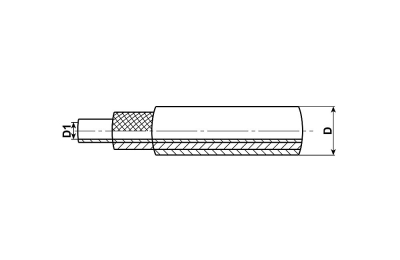

| Inner diameter di | 4mm |
| Outer diameter da | 8.6mm |
| Lincoln Reference | 504-36033-3 |
| SKF Reference | 982-750-091+AF |
| Stock Status | In Stock |
|---|
