HIGH PRESSURE HOSE 8,6x4

SKU
1140190

High pressure hose 8.6x4

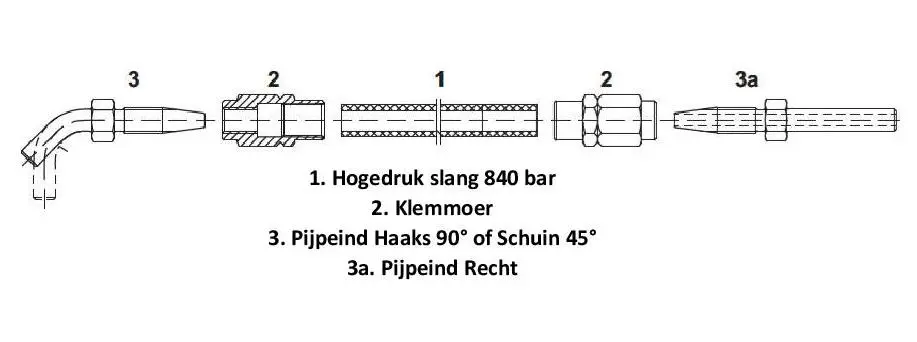

To be used in automated or manual lubrication applications. Easy assembly (without hose press) using associated two part couplers.

Price and purchase per meter.

Stock quantity: 2468
€5.45
Verzending door DHL

Orders placed on workdays before 15:30 will be shipped the same day.


High pressure hose 8.6x4

Thermoplastic high pressure hose
Inner core Thermoplastic polyestere elastometer
Pressure reinforcement High tensile polyestere fiber
Outer cover TPU
Operating pressure 207 bar
Burst pressure test Min. 840 bar at 20 °C
Safety factor 4:1
Minimum bend radius 20mm at 20 °C
Temperature range

-40°C / 120°C Vet & Olie

-40°C / 70°C Water & Lucht

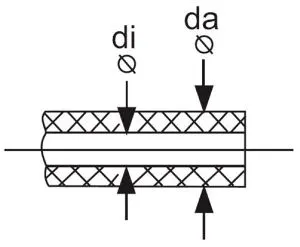

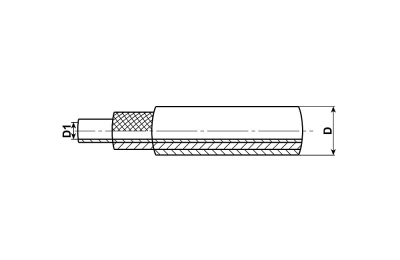

Inner diameter  di 4mm
Outer diameter da 8.6mm
Lincoln Reference 111-35114-1
SKF Reference 982-750-091
