- HIGH PRESSURE HOSE 11.3x6.3

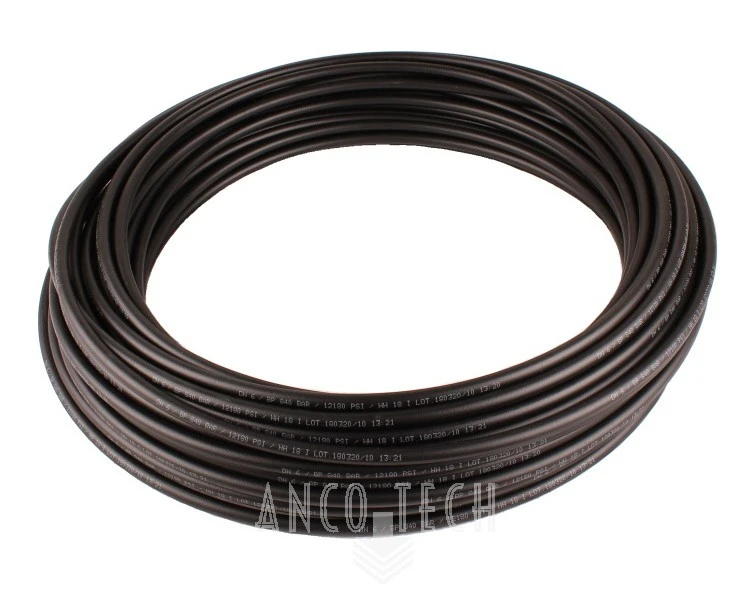

High pressure hose 11.3x6.3

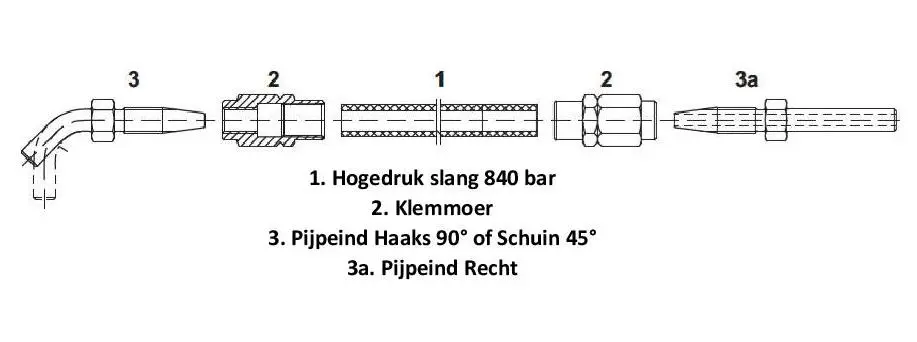

To be used in automated or manual lubrication applications. Easy assembly (without hose press) using associated two part-couplers.
Price and purchase per meter:
Inner core | Thermoplastic Polyester Elastomer |
Reinforcement | High-quality Polyester fibers |
Outer sheath | Polyurethane Black |
Dynamic working pressure | 210 bar |
Static working pressure | 280 bar |
Burst pressure | >840 bar at 20°C |
Minimum bending radius | >45mm at 20°C |
Temperature range | -40°C / 80°C Grease & Oil |
Filled with NLGI 2 grease | No / Empty |

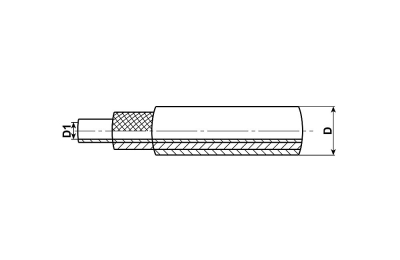

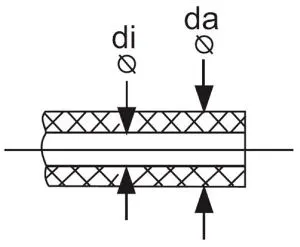

Inner diameter D1 | 6.3mm |
Outer diameter D | 11.3mm |
Lincoln Reference | 111-35301-4 |
SKF Reference | 982-750-111 |
Specifications
- ID 246
- SKU 5010105
- Diameter hose 11.3x6.3
- Lincoln Reference 111-35301-4
- SKF Reference 982-750-111
- Stock status In stock
